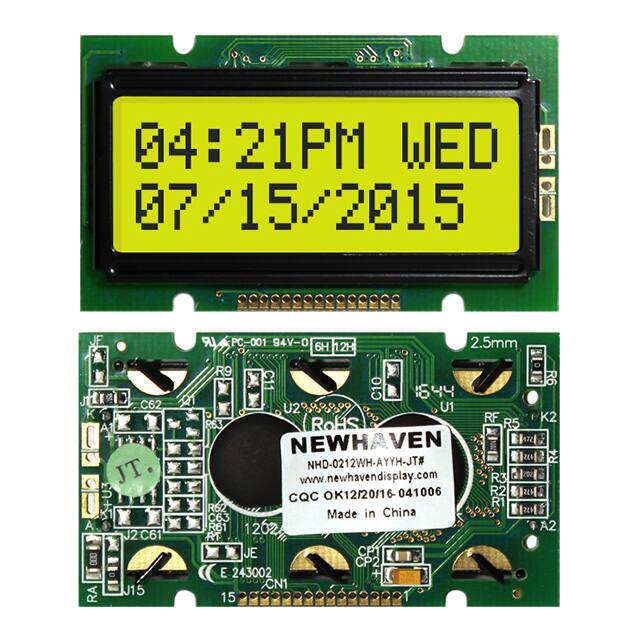

NHD-0212WH-AYYH-JT#

Specifications

Viewing Area

46.00mm L x 14.50mm W

Fabrika Tedarik Süresi

14 Weeks

Operating Supply Voltage

5V

Outline LXWXH

55.70mm x 32.00mm x 9.70mm

Display Type

STN - Super-Twisted Nematic

Ambalaj

Bulk

Character Format

5 x 8 Dots

Background Color

Green

Besleme Gerilimi

4.5V~5.5V

Backlight

LED - Yellow/Green

Display Format

12 x 2

Interface

Parallel

Çalışma Sıcaklığı

-20°C~70°C

Controller Type

ST7066

Text Color

Blue

Backlight Type

LED

Number Of Characters

24

Yayın Yılı

2013

Character Size

5.50mm Hx2.65mm W

Dot Size

0.45mm Wx0.60mm H

Display Mode

Transflective

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

Not Applicable

Parça Durumu

Active
