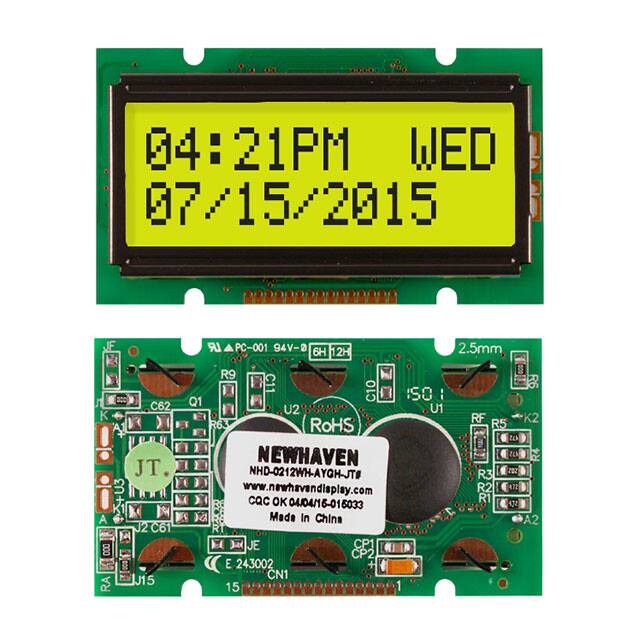

NHD-0212WH-AYGH-JT#

Specifications

Parça Durumu

Active

Nem Hassasiyeti (MSL)

Not Applicable

Yayın Yılı

2009

Number Of Characters

24

Dot Size

0.45mm Wx0.60mm H

Text Color

Blue

Çalışma Sıcaklığı

-20°C~70°C

Display Format

12 x 2

Backlight

LED - Yellow/Green

Pin Sayısı

15

RoHS Durumu

RoHS Compliant

Display Mode

Transflective

Character Size

5.50mm Hx2.65mm W

Backlight Type

LED

Controller Type

ST7066

Contrast Ratio

2:1

Interface

Parallel

Background Color

Green

Besleme Gerilimi

4.5V~5.5V

Montaj

Screw

Character Format

5 x 8 Dots

Outline LXWXH

55.70mm x 32.00mm x 9.70mm

Display Type

STN - Super-Twisted Nematic

Ambalaj

Bulk

Viewing Area

46.00mm L x 14.50mm W

Operating Supply Voltage

5V

Fabrika Tedarik Süresi

14 Weeks
