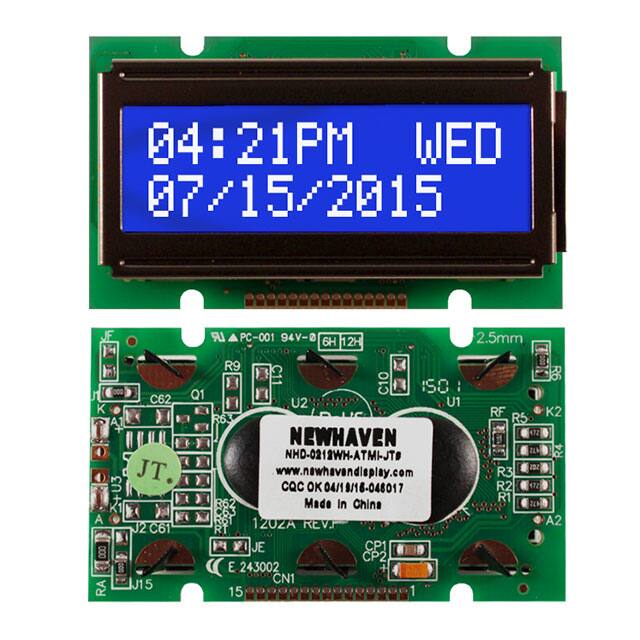

NHD-0212WH-ATMI-JT#

Specifications

Display Height

5.5mm

Interface

Parallel

Besleme Gerilimi

4.5V~5.5V

Background Color

Blue

Character Format

5 x 8 Dots

Montaj

Screw

Ambalaj

Bulk

Display Type

STN - Super-Twisted Nematic

Outline LXWXH

55.70mm x 32.00mm x 14.50mm

Fabrika Tedarik Süresi

14 Weeks

Operating Supply Voltage

5V

Viewing Area

46.00mm L x 14.50mm W

Pin Sayısı

15

RoHS Durumu

RoHS Compliant

Character Size

5.50mm Hx2.65mm W

Display Mode

Transmissive

Backlight Type

LED

Controller Type

ST7066

Contrast Ratio

2:1

Çalışma Sıcaklığı

-20°C~70°C

Display Format

12 x 2

Overall Length

55.7mm

Backlight

LED - White

Character Font Type

5x8 Dot

Characters Per Row

12

Overall Height

32mm

Parça Durumu

Active

Nem Hassasiyeti (MSL)

Not Applicable

Rows Per Display

2

Dot Size

0.45mm Wx0.60mm H

Yayın Yılı

2009

Number Of Characters

24

Overall Depth

14.5mm

Text Color

White

Besleme Gerilimi

5V
