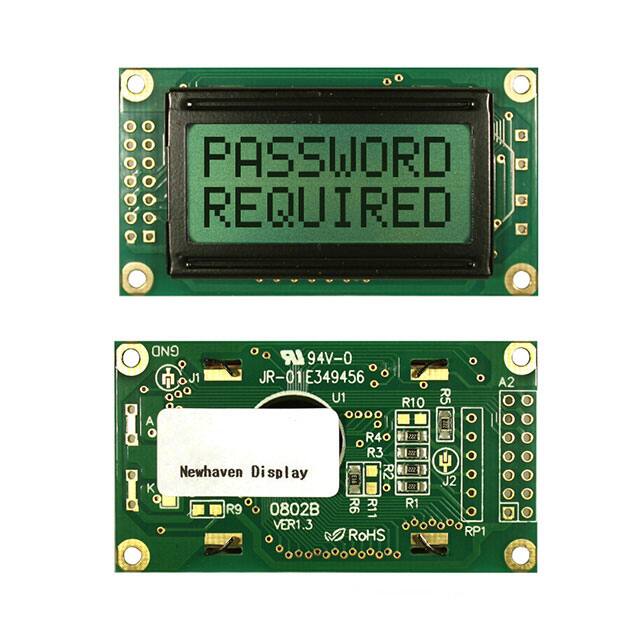

NHD-0208BZ-RN-YBW

Specifications

RoHS Durumu

RoHS Compliant

Controller Type

SPLC780D OR ST7066U

Character Size

5.56mm Hx2.96mm W

Display Mode

Reflective

Interface

Parallel

Display Height

5.56mm

Character Format

5 x 8 Dots

Background Color

Green

Besleme Gerilimi

4.7V~5.5V

Outline LXWXH

58.00mm x 32.00mm x 9.50mm

Display Type

STN - Super-Twisted Nematic

Viewing Area

38.00mm L x 16.00mm W

Operating Supply Voltage

5V

Fabrika Tedarik Süresi

14 Weeks

Parça Durumu

Active

Overall Height

32mm

Rows Per Display

2

Nem Hassasiyeti (MSL)

Not Applicable

Text Color

Gray

Overall Depth

9.5mm

Yayın Yılı

2009

Number Of Characters

16

Dot Size

0.56mm Wx0.66mm H

Besleme Gerilimi

3V

Overall Length

58mm

Display Format

8 x 2

Çalışma Sıcaklığı

-20°C~70°C

Backlight

Without Backlight

Character Font Type

5x8 Dot

Characters Per Row

8
