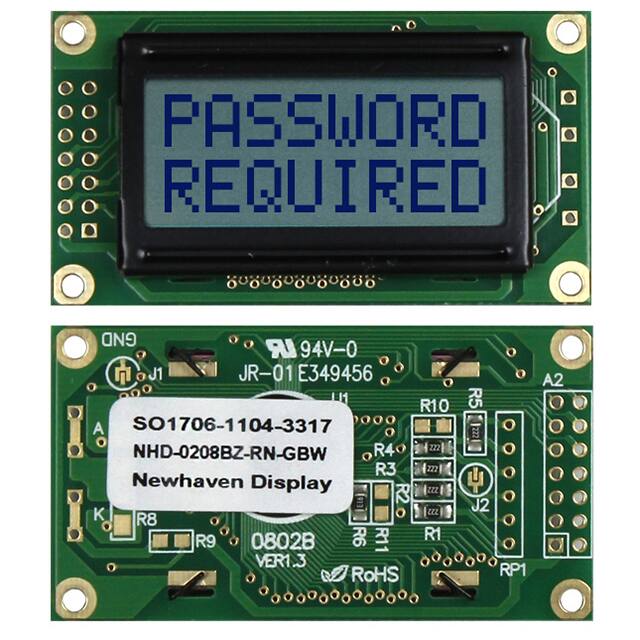

NHD-0208BZ-RN-GBW

Specifications

Character Size

5.56mm Hx2.96mm W

Display Mode

Reflective

Controller Type

SPLC780D OR ST7066U

Contrast Ratio

2:1

RoHS Durumu

RoHS Compliant

Display Type

STN - Super-Twisted Nematic

Outline LXWXH

58.00mm x 32.00mm x 9.50mm

Kılıf / Paket

Module

Operating Supply Voltage

5V

Fabrika Tedarik Süresi

14 Weeks

Viewing Area

38.00mm L x 16.00mm W

Interface

Parallel

Besleme Gerilimi

4.7V~5.5V

Background Color

White

Character Format

5 x 8 Dots

Montaj

Screw

Dot Size

0.56mm Wx0.66mm H

Yayın Yılı

2009

Number Of Characters

16

Text Color

Blue

Parça Durumu

Active

Nem Hassasiyeti (MSL)

Not Applicable

Çalışma Sıcaklığı

-20°C~70°C

Display Format

8 x 2

Backlight

Without Backlight
