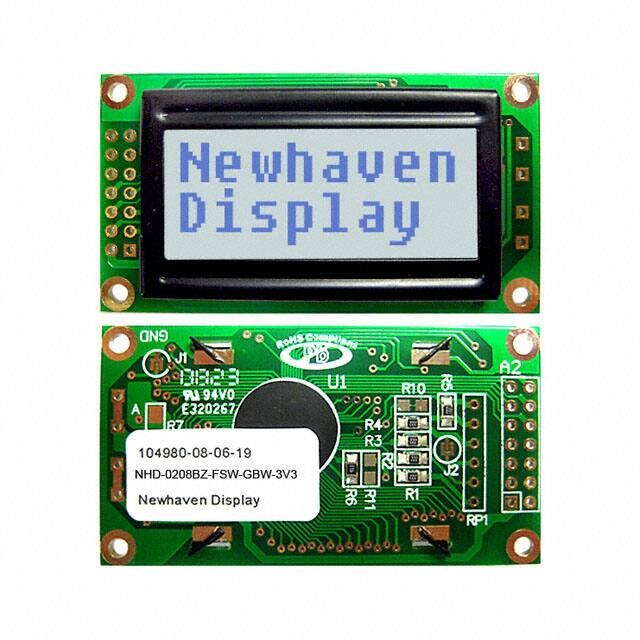

NHD-0208BZ-FSW-GBW-3V3

Specifications

Display Height

5.56mm

Interface

Parallel

Background Color

White

Besleme Gerilimi

2.7V~3.3V

Montaj

Screw

Character Format

5 x 8 Dots

Outline LXWXH

58.00mm x 32.00mm x 13.00mm

Display Type

STN - Super-Twisted Nematic

Ambalaj

Bulk

Kılıf / Paket

Module

Viewing Area

38.00mm L x 16.00mm W

Operating Supply Voltage

3V

Pin Sayısı

14

RoHS Durumu

RoHS Compliant

Character Size

5.56mm Hx2.96mm W

Display Mode

Transflective

Backlight Type

LED

Contrast Ratio

2:1

Çalışma Sıcaklığı

-20°C~70°C

Display Format

8 x 2

Overall Length

58mm

Backlight

LED - White

Character Font Type

5x8 Dot

Characters Per Row

8

Parça Durumu

Obsolete

Overall Height

32mm

Nem Hassasiyeti (MSL)

Not Applicable

Rows Per Display

2

Number Of Characters

16

Yayın Yılı

2009

Dot Size

0.56mm Wx0.66mm H

Text Color

Gray

Overall Depth

13mm

Besleme Gerilimi

3V
