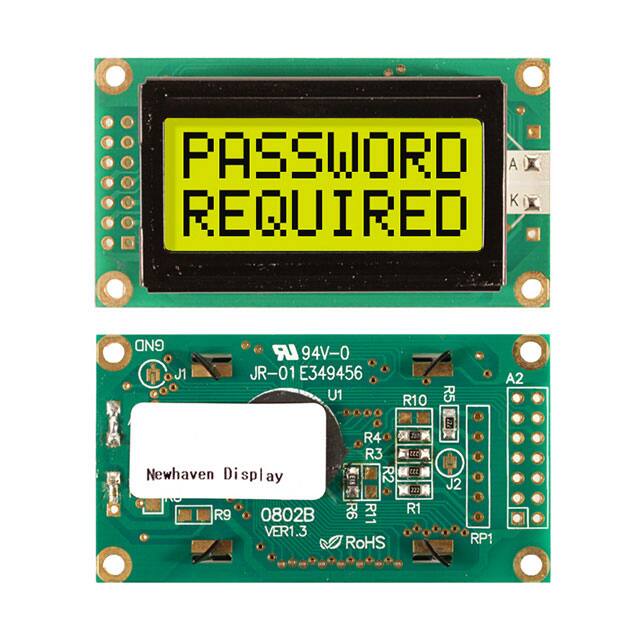

NHD-0208BZ-FL-YBW

Specifications

Pin Sayısı

14

RoHS Durumu

RoHS Compliant

Display Mode

Transflective

Character Size

5.56mm Hx2.96mm W

Controller Type

SPLC780D OR ST7066U

Backlight Type

LED

Contrast Ratio

2:1

Interface

Parallel

Background Color

Green

Besleme Gerilimi

4.7V~5.5V

Montaj

Screw

Character Format

5 x 8 Dots

Outline LXWXH

58.00mm x 32.00mm x 13.00mm

Display Type

STN - Super-Twisted Nematic

Ambalaj

Bulk

Viewing Area

38.00mm L x 16.00mm W

Fabrika Tedarik Süresi

14 Weeks

Operating Supply Voltage

5V

Parça Durumu

Active

Nem Hassasiyeti (MSL)

Not Applicable

Number Of Characters

16

Yayın Yılı

2009

Dot Size

0.56mm Wx0.66mm H

Text Color

Blue

Çalışma Sıcaklığı

-20°C~70°C

Display Format

8 x 2

Backlight

LED - Yellow/Green
