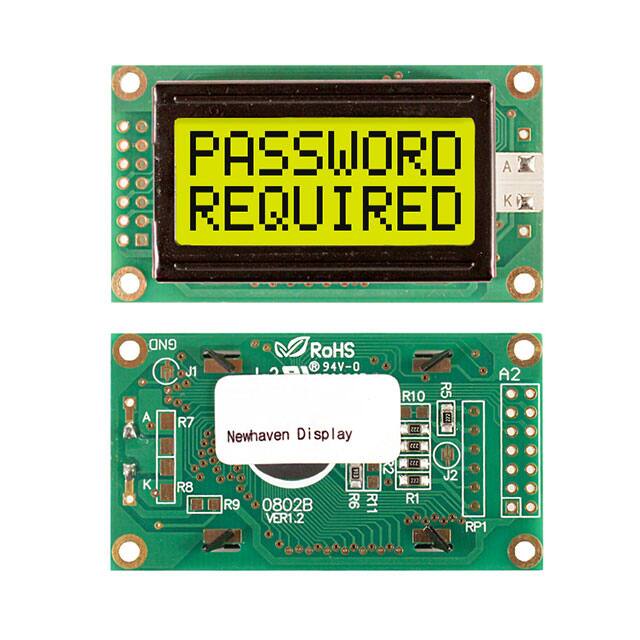

NHD-0208BZ-FL-GBW

Specifications

Besleme Gerilimi

5V

Text Color

Blue

Overall Depth

13mm

Number Of Characters

16

Yayın Yılı

2009

Dot Size

0.56mm Wx0.66mm H

Rows Per Display

2

Nem Hassasiyeti (MSL)

Not Applicable

Parça Durumu

Active

Overall Height

32mm

Characters Per Row

8

Character Font Type

5x7 + CSR

Backlight

LED - Yellow/Green

Overall Length

58mm

Display Format

8 x 2

Çalışma Sıcaklığı

-20°C~70°C

Backlight Type

LED

Controller Type

SPLC780D OR ST7066U

Character Size

5.56mm Hx2.96mm W

Display Mode

Transflective

RoHS Durumu

RoHS Compliant

Viewing Area

38.00mm L x 16.00mm W

Operating Supply Voltage

5V

Fabrika Tedarik Süresi

14 Weeks

Outline LXWXH

58.00mm x 32.00mm x 13.00mm

Display Type

STN - Super-Twisted Nematic

Ambalaj

Bulk

Character Format

5 x 8 Dots

Background Color

Green

Besleme Gerilimi

4.7V~5.5V

Interface

Parallel

Display Height

5.56mm
