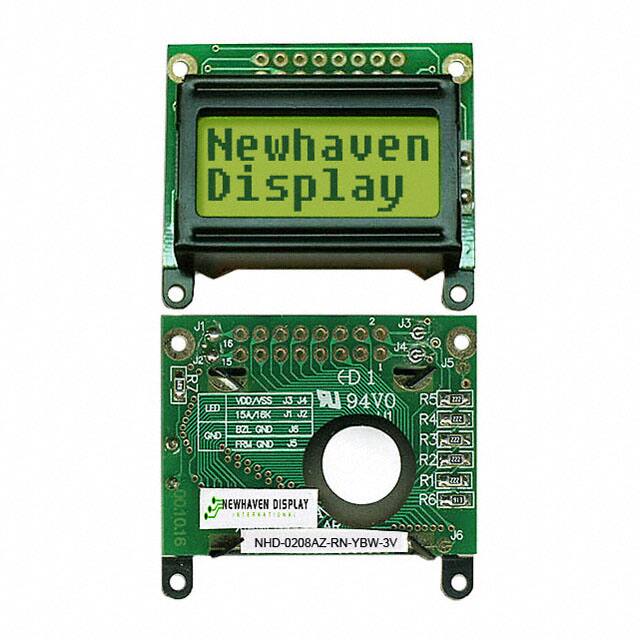

NHD-0208AZ-RN-YBW-3V

Specifications

Character Font Type

5x7 + CSR

Characters Per Row

8

Overall Length

40mm

Display Format

8 x 2

Çalışma Sıcaklığı

-20°C~70°C

Backlight

Without Backlight

Overall Depth

13.5mm

Text Color

Gray

Dot Size

0.55mm Wx0.55mm H

Yayın Yılı

2009

Number Of Characters

16

Besleme Gerilimi

3V

Parça Durumu

Obsolete

Overall Height

35mm

Rows Per Display

2

Nem Hassasiyeti (MSL)

Not Applicable

Display Type

STN - Super-Twisted Nematic

Ambalaj

Bulk

Outline LXWXH

40.00mm x 35.40mm x 13.50mm

Operating Supply Voltage

3V

Viewing Area

30.40mm L x 13.90mm W

Interface

Parallel

Display Height

4.75mm

Character Format

5 x 8 Dots

Besleme Gerilimi

2.7V~3.3V

Background Color

Green

Character Size

4.75mm Hx2.95mm W

Display Mode

Reflective

RoHS Durumu

RoHS Compliant
