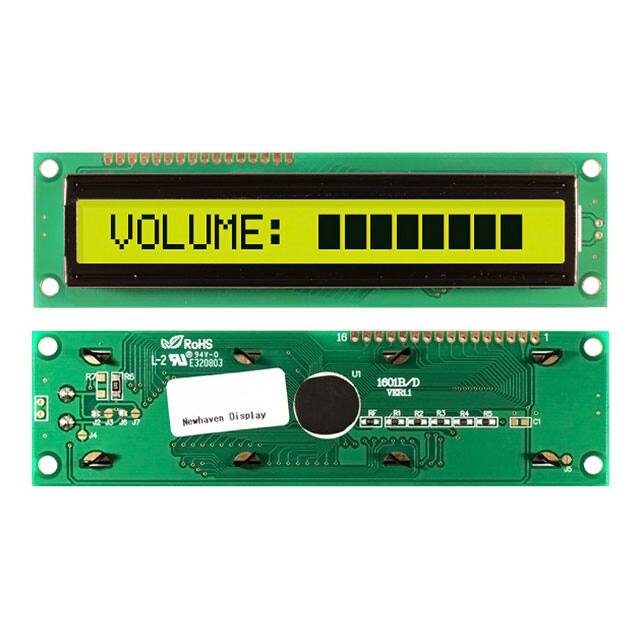

NHD-0116DZ-FL-YBW

Specifications

Backlight

LED - Yellow/Green

Besleme Gerilimi

4.7V~5.5V

Background Color

Green

Character Format

5 x 7 Dots w/Cursor

Çalışma Sıcaklığı

-20°C~70°C

Interface

Parallel

Display Format

16 x 1

Fabrika Tedarik Süresi

14 Weeks

Operating Supply Voltage

5V

Viewing Area

99.00mm L x 13.00mm W

Ambalaj

Bulk

Display Type

STN - Super-Twisted Nematic

Outline LXWXH

122.00mm x 33.00mm x 14.00mm

Nem Hassasiyeti (MSL)

Not Applicable

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Display Mode

Transflective

Dot Size

0.92mm Wx1.10mm H

Character Size

9.66mm Hx4.84mm W

Number Of Characters

16

Yayın Yılı

2009

Controller Type

SPLC780D OR ST7066U

Text Color

Gray

Backlight Type

LED
