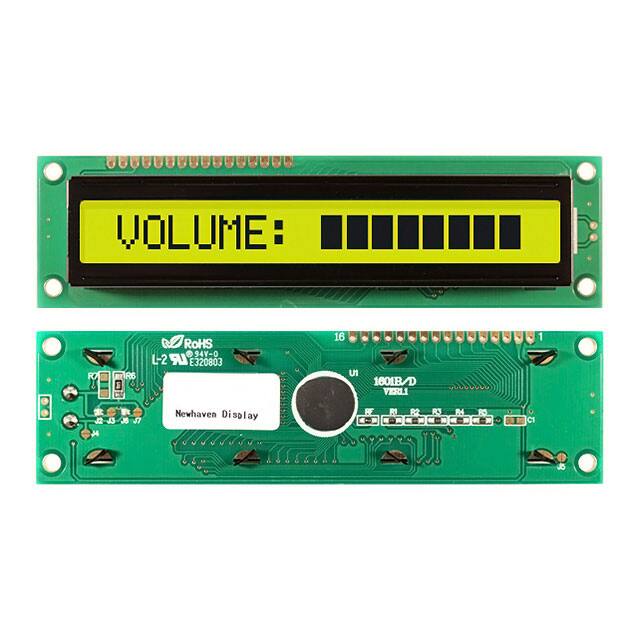

NHD-0116DZ-FL-GBW

Specifications

Parça Durumu

Active

Nem Hassasiyeti (MSL)

Not Applicable

RoHS Durumu

RoHS Compliant

Yayın Yılı

2009

Number Of Characters

16

Dot Size

0.92mm Wx1.10mm H

Display Mode

Transflective

Character Size

9.66mm Hx4.84mm W

Controller Type

SPLC780D OR ST7066U

Text Color

Blue

Backlight Type

LED

Çalışma Sıcaklığı

-20°C~70°C

Display Format

16 x 1

Interface

Parallel

Background Color

Green

Backlight

LED - Yellow/Green

Besleme Gerilimi

4.7V~5.5V

Character Format

5 x 7 Dots w/Cursor

Outline LXWXH

122.00mm x 33.00mm x 14.00mm

Ambalaj

Bulk

Display Type

STN - Super-Twisted Nematic

Viewing Area

99.00mm L x 13.00mm W

Fabrika Tedarik Süresi

14 Weeks

Operating Supply Voltage

5V
