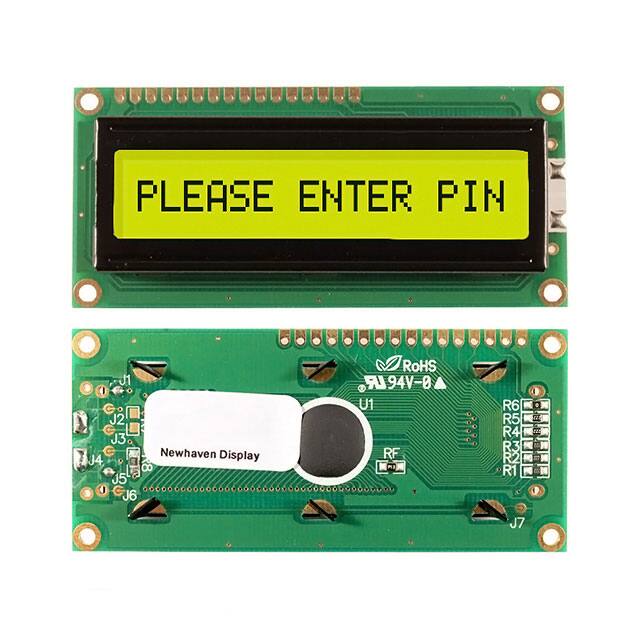

NHD-0116AZ-FL-YBW

Specifications

Viewing Area

64.00mm L x 13.80mm W

Fabrika Tedarik Süresi

14 Weeks

Outline LXWXH

80.00mm x 36.00mm x 13.50mm

Display Type

STN - Super-Twisted Nematic

Character Format

5 x 8 Dots

Background Color

Green

Backlight

LED - Yellow/Green

Besleme Gerilimi

4.7V~5.5V

Display Format

16 x 1

Interface

Parallel

Çalışma Sıcaklığı

-20°C~70°C

Controller Type

SPLC780D OR ST7066U

Text Color

Blue

Number Of Characters

16

Yayın Yılı

2009

Character Size

6.56mm Hx3.07mm W

Dot Size

0.55mm Wx0.75mm H

Display Mode

Transflective

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

Not Applicable

Parça Durumu

Active
