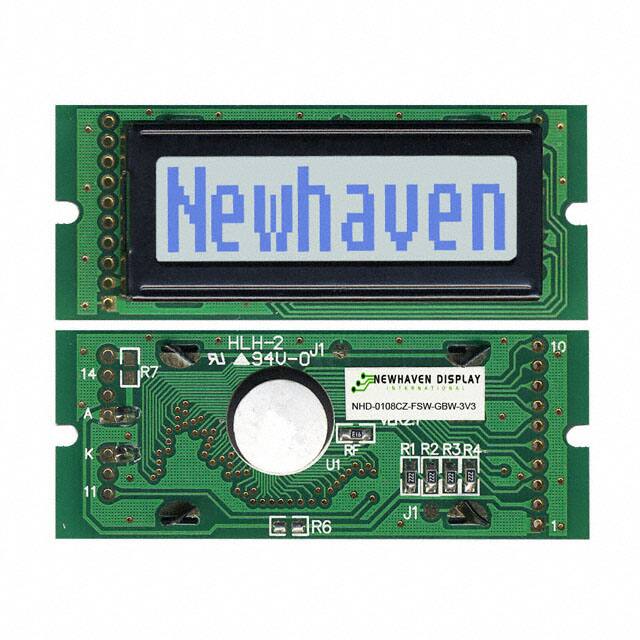

NHD-0108CZ-FSW-GBW-3V3

Specifications

Çalışma Sıcaklığı

-20°C~70°C

Interface

Parallel

Display Format

8 x 1

Besleme Gerilimi

3.3V

Backlight

LED - White

Background Color

Gray

Character Format

5 x 8 Dots

Display Type

STN - Super-Twisted Nematic

Outline LXWXH

69.00mm x 27.00mm x 13.00mm

Operating Supply Voltage

3V

Viewing Area

45.20mm L x 13.80mm W

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

Not Applicable

RoHS Durumu

RoHS Compliant

Character Size

7.71mm Hx4.20mm W

Dot Size

0.80mm Wx0.92mm H

Display Mode

Transflective

Number Of Characters

8

Yayın Yılı

2009

Text Color

Blue

Backlight Type

LED
