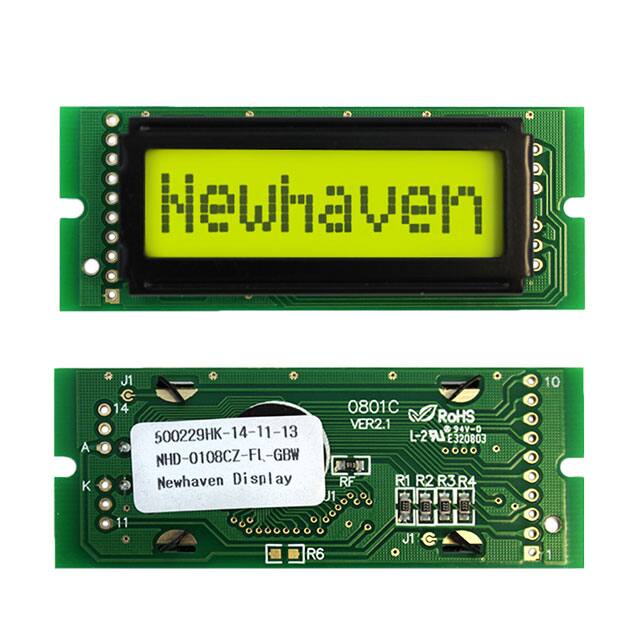

NHD-0108CZ-FL-GBW

Specifications

Operating Supply Voltage

5V

Fabrika Tedarik Süresi

14 Weeks

Viewing Area

45.20mm L x 13.80mm W

Display Type

STN - Super-Twisted Nematic

Ambalaj

Bulk

Outline LXWXH

69.00mm x 27.00mm x 13.00mm

Besleme Gerilimi

4.7V~5.5V

Background Color

Green

Character Format

5 x 8 Dots

Montaj

Screw

Interface

Parallel

Contrast Ratio

2:1

Display Mode

Transflective

Character Size

7.71mm Hx4.20mm W

Backlight Type

LED

Controller Type

SPLC780D OR ST7066U

RoHS Durumu

RoHS Compliant

Pin Sayısı

16

Backlight

LED - Yellow/Green

Çalışma Sıcaklığı

-20°C~70°C

Display Format

8 x 1

Dot Size

0.80mm Wx0.92mm H

Yayın Yılı

2009

Number Of Characters

8

Text Color

Blue

Nem Hassasiyeti (MSL)

Not Applicable

Parça Durumu

Active
