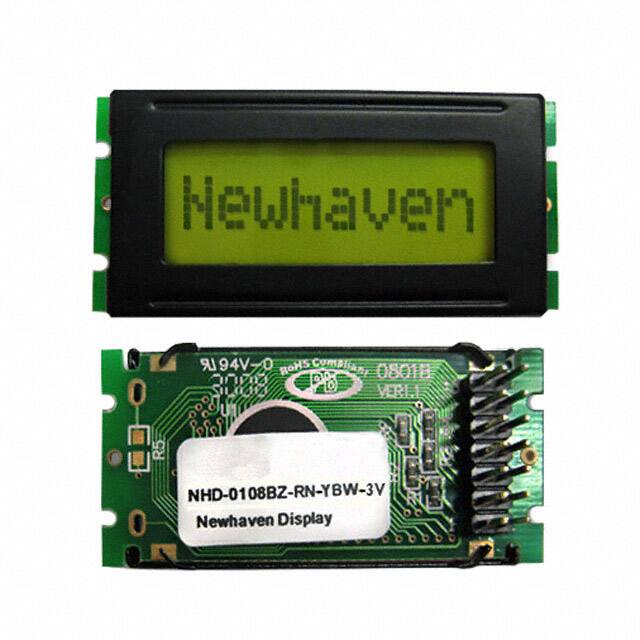

NHD-0108BZ-RN-YBW-3V

Specifications

Operating Supply Voltage

3V

Viewing Area

35.00mm L x 12.60mm W

Display Type

STN - Super-Twisted Nematic

Outline LXWXH

53.00mm x 24.20mm x 11.00mm

Character Format

5 x 8 Dots

Backlight

Without Backlight

Besleme Gerilimi

2.7V~3.3V

Background Color

Green

Interface

Parallel

Display Format

8 x 1

Çalışma Sıcaklığı

-20°C~70°C

Text Color

Gray

Character Size

7.10mm Hx3.40mm W

Dot Size

0.60mm Wx0.80mm H

Display Mode

Reflective

Number Of Characters

8

Yayın Yılı

2009

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

Not Applicable

Parça Durumu

Obsolete
