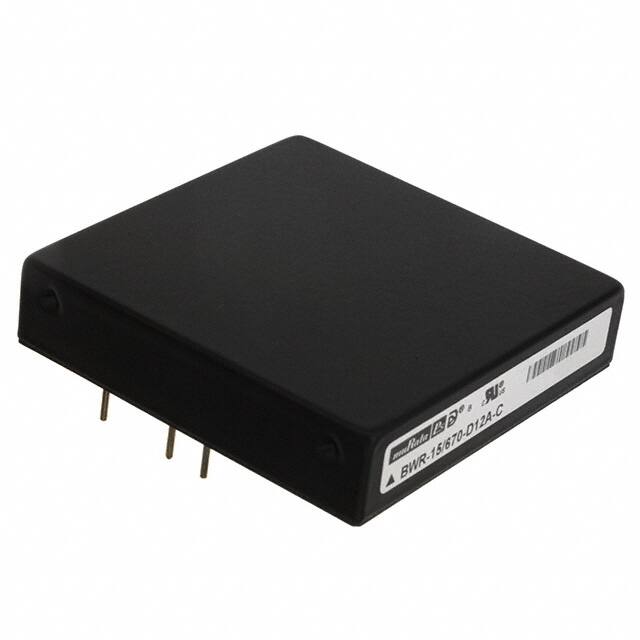

BWR-15/670-D12A-C

Specifications

Number Of Outputs

2

ECCN Kodu

EAR99

JESD-609 Kodu

e4

Efficiency

83%

Power Rating

20W

Max Power Dissipation

20W

Depth

50.8mm

Terminal Pozisyonu

DUAL

Tip

Isolated Module

Montaj Tipi

Through Hole

Pin Sayısı

7

Reach Svhc

No SVHC

Flammability Rating

UL94 V-0

Current Output2

670mA

Max Input Voltage Dc

36V

Kurşunsuz Kodu

yes

Nominal Output Voltage

-15V

Boyut / Ölçü

2.00Lx2.00W x 0.45 H 50.8mmx50.8mmx11.4mm

Montaj

Through Hole

Weight

75.6g

Nem Hassasiyeti (MSL)

1 (Unlimited)

Min Input Voltage Dc

9V

Voltage Isolation

1kV

Isolation

Isolated

Additional Feature

ADDITIONAL -15V OUTPUT AVAILABLE

Terminal Kaplaması

GOLD

Trimadjustable Output

YES

Output Power

20W

Ambalaj

Tube

Pin Sayısı

7

Seri

BWR (10W)

Input Voltagenom

24V

Current Output1

670mA

Parça Durumu

Active

Fonksiyon Sayısı

1

Terminal Formu

PIN/PEG

Terminal Sayısı

7

Kılıf / Paket

8-DIP Module, 7 Leads

Output Voltage

15V

Output Current

670mA
