Specifications
- Reference Standard
- UL, CSA
- Din Conformance
- NO
- Filter Feature
- NO
- Mounting Option2
- LOCKING
- Voltage Rated Ac
- 50V
- Lead Pitch
- 1.27mm
- Contact Resistance
- 30mOhm
- Body Depth
- 0.503 inch
- Insertion Forcemax
- .7784 N
- Contact Plating
- Gold
- Pcb Contact Row Spacing
- 0.063 mm
- JESD-609 Kodu
- e3
- Min. Çalışma Sıcaklığı
- -40°C
- Reliability
- COMMERCIAL
- Mounting Option1
- LATCH & EJECT
- Ul Flammability Code
- 94V-0
- Radyasyon Dayanımı
- No
- Insulator Color
- BLACK
- Contact Materials
- COPPER ALLOY
- Parça Durumu
- Discontinued
- Sıra Sayısı
- 2
- Orientation
- Right Angle
- Polarization Key
- POLARIZED KEY

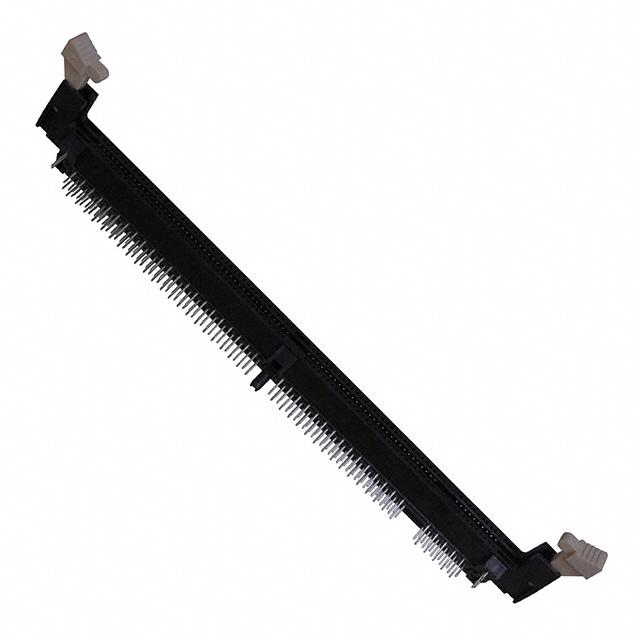

- Connector Type
- CARD EDGE CONNECTOR
- Contact Finish Termination
- TIN (100)
- Total Number Of Contacts
- 168
- Number Of Conductors
- ONE
- Pozisyon Sayısı
- 168
- Uzunluk
- 148.5mm
- RoHS Durumu
- RoHS Compliant
- Iec Conformance
- NO
- Contact Style
- BELLOWED TYPE
- Body Breadth
- 0.458 inch
- Insulation Resistance
- 1GOhm
- Board Mounting Option
- PEG
- Number Of Pcb Rows
- 4
- Pcb Contact Pattern
- STAGGERED
- Akım Değeri
- 1A
- Bodyshell Style
- RECEPTACLE
- Withdrawl Forcemin
- .0695 N
