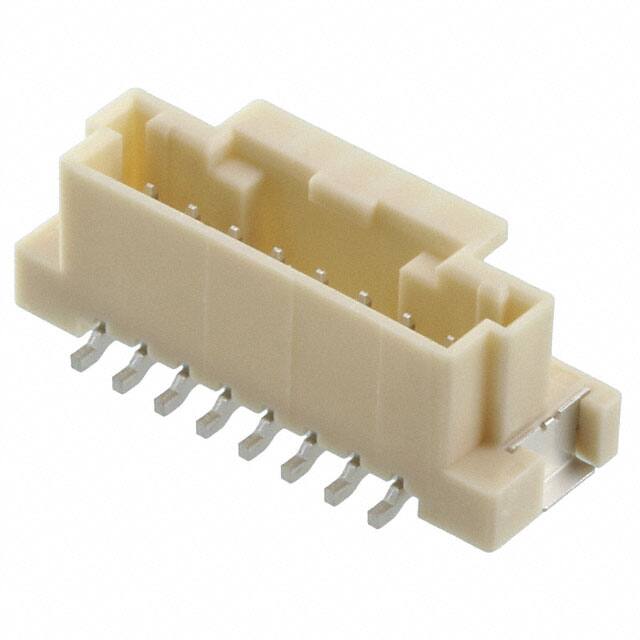

5600200820

Specifications

Orientation

Vertical

Terminal

Solder

Fabrika Tedarik Süresi

11 Weeks

Insulation Materials

Polyamide (PA), Nylon

Connector Type

Header

Mating Contact Pitch

0.079 inch

Number Of Positions Loaded

All

Reference Standard

UL

Montaj Tipi

Surface Mount

Gender

Male

Terminal Adımı

2.0066mm

Montaj

Surface Mount

Fastening Type

Latch Lock

Shrouding

Shrouded - 4 Wall

RoHS Durumu

ROHS3 Compliant

Polarization Key

POLARIZED HOUSING

Rated Current Signal

3A

Contact Type

Male Pin

Stack Height Mating

9.3mm

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.307 inch

Number Of Conductors

ONE

Seri

DuraClik 560020

Sıra Sayısı

1

Applications

Automotive, Industrial

JESD-609 Kodu

e3

Style

Board to Cable/Wire

Glow Wire Compliant

Non-compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Özellikler

Solder Retention

Reliability

COMMERCIAL

Contact Finish Mating

Tin

ECCN Kodu

EAR99

Contact Shape

Square

Insulation Height

0.315 8.00mm

Number Of Contacts

8

Parça Durumu

Active

Number Of Pcb Rows

1

Yayın Yılı

2015
