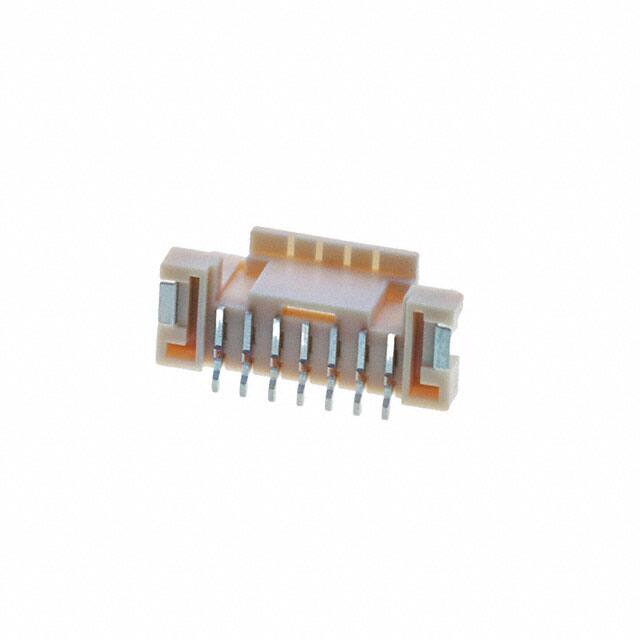

5600200730

Specifications

Rated Current Signal

3A

Stack Height Mating

9.3mm

Contact Type

Male Pin

Pcb Contact Pattern

RECTANGULAR

Seri

DuraClik 560020

Number Of Conductors

ONE

Applications

Automotive, Industrial

Sıra Sayısı

1

Pozisyon Sayısı

7

Terminal

Solder

Connector Type

Header

Kurşunsuz Kodu

yes

Insulation Materials

Polyamide (PA), Nylon

Fabrika Tedarik Süresi

11 Weeks

Number Of Positions Loaded

All

Reference Standard

UL

Montaj Tipi

Surface Mount

Board Mounting Option

FITTING NAIL

Terminal Adımı

2.0066mm

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Lock

Shrouding

Shrouded - 4 Wall

RoHS Durumu

ROHS3 Compliant

Polarization Key

POLARIZED HOUSING

Total Number Of Contacts

7

Yayın Yılı

2015

Durability

30 Cycles

Insulation Color

Natural

Pitch Mating

0.079 2.00mm

Contact Materials

Copper Alloy

Operating Temperature Min

-40°C

JESD-609 Kodu

e3

Style

Board to Cable/Wire

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Reliability

COMMERCIAL

Contact Finish Mating

Gold

Contact Shape

Square

Mounting Option1

LOCKING
