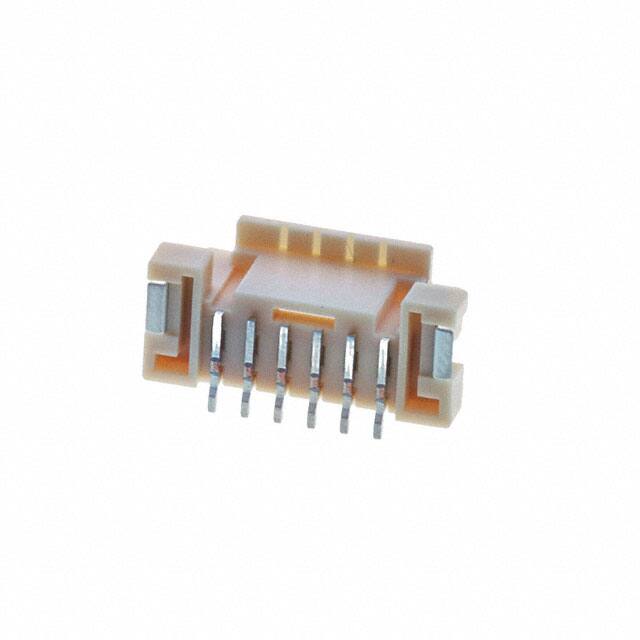

5600200630

Specifications

Terminal

Solder

Pozisyon Sayısı

6

Fabrika Tedarik Süresi

13 Weeks

Insulation Materials

Polyamide (PA), Nylon

Connector Type

Header

Kurşunsuz Kodu

yes

Reference Standard

UL

Mating Contact Pitch

0.079 inch

Number Of Positions Loaded

All

Board Mounting Option

FITTING NAIL

Montaj Tipi

Surface Mount

Fastening Type

Latch Lock

Shrouding

Shrouded - 4 Wall

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Polarization Key

POLARIZED HOUSING

Rated Current Signal

3A

Pcb Contact Pattern

RECTANGULAR

Stack Height Mating

9.3mm

Contact Type

Male Pin

Body Breadth

0.307 inch

Number Of Conductors

ONE

Seri

DuraClik 560020

Sıra Sayısı

1

Applications

Automotive, Industrial

JESD-609 Kodu

e3

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Style

Board to Cable/Wire

Özellikler

Solder Retention

Contact Finish Mating

Gold

Reliability

COMMERCIAL

Mounting Option1

LOCKING

Contact Shape

Square

Parça Durumu

Active

Number Of Pcb Rows

1

Insulation Height

0.236 6.00mm

Total Number Of Contacts

6

Yayın Yılı

2015

Body Length Or Diameter

0.732 inch
