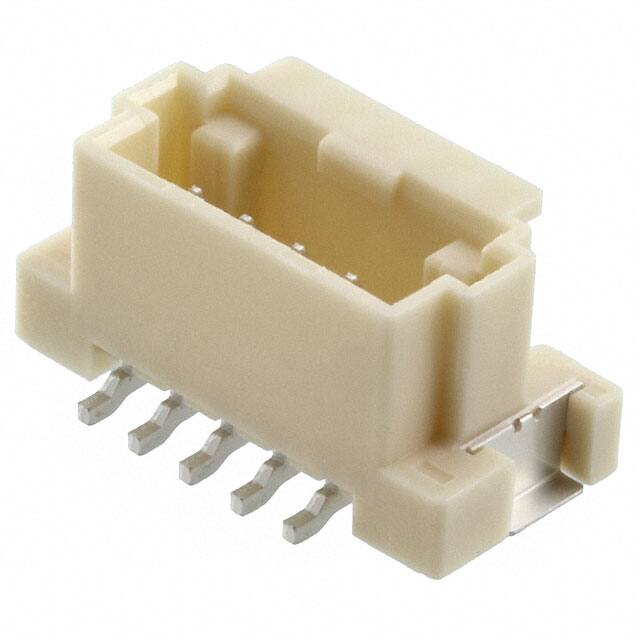

5600200520

Specifications

Insulation Height

0.315 8.00mm

Number Of Pcb Rows

1

Parça Durumu

Active

Contact Shape

Square

ECCN Kodu

EAR99

Mounting Option1

LOCKING

Reliability

COMMERCIAL

Contact Finish Mating

Tin

Özellikler

Solder Retention

Style

Board to Cable/Wire

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e3

Operating Temperature Min

-40°C

Dielectric Withstanding Voltage

700VAC V

Insulation Color

Natural

Pitch Mating

0.079 2.00mm

Contact Materials

Copper Alloy

Durability

30 Cycles

Yayın Yılı

2015

Total Number Of Contacts

5

Polarization Key

POLARIZED HOUSING

RoHS Durumu

ROHS3 Compliant

Shrouding

Shrouded - 4 Wall

Fastening Type

Latch Lock

Montaj Tipi

Surface Mount

Terminal Adımı

2.0066mm

Number Of Positions Loaded

All

Mating Contact Pitch

0.079 inch

Reference Standard

UL

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon

Fabrika Tedarik Süresi

11 Weeks

Pozisyon Sayısı

5

Terminal

Solder

Sıra Sayısı

1

Applications

Automotive, Industrial

Seri

DuraClik 560020

Number Of Conductors

ONE

Body Breadth

0.307 inch
