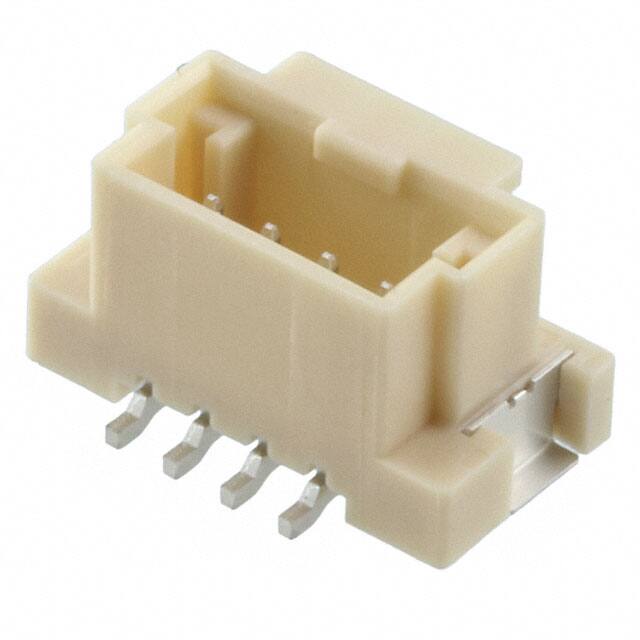

5600200420

Specifications

Insulation Height

0.315 8.00mm

Number Of Pcb Rows

1

Parça Durumu

Active

Contact Shape

Square

ECCN Kodu

EAR99

Mounting Option1

LOCKING

Özellikler

Solder Retention

Reliability

COMMERCIAL

Contact Finish Mating

Tin

JESD-609 Kodu

e3

Style

Board to Cable/Wire

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

700VAC V

Insulation Color

Natural

Pitch Mating

0.079 2.00mm

Contact Materials

Copper Alloy

Body Length Or Diameter

0.575 inch

Durability

30 Cycles

Total Number Of Contacts

4

Yayın Yılı

2015

RoHS Durumu

ROHS3 Compliant

Polarization Key

POLARIZED HOUSING

Montaj Tipi

Surface Mount

Terminal Adımı

2.0066mm

Shrouding

Shrouded - 4 Wall

Fastening Type

Latch Lock

Number Of Positions Loaded

All

Mating Contact Pitch

0.079 inch

Reference Standard

UL

Pozisyon Sayısı

4

Terminal

Solder

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon

Fabrika Tedarik Süresi

12 Weeks

Seri

DuraClik 560020

Number Of Conductors

ONE

Sıra Sayısı

1

Applications

Automotive, Industrial

Body Breadth

0.307 inch
