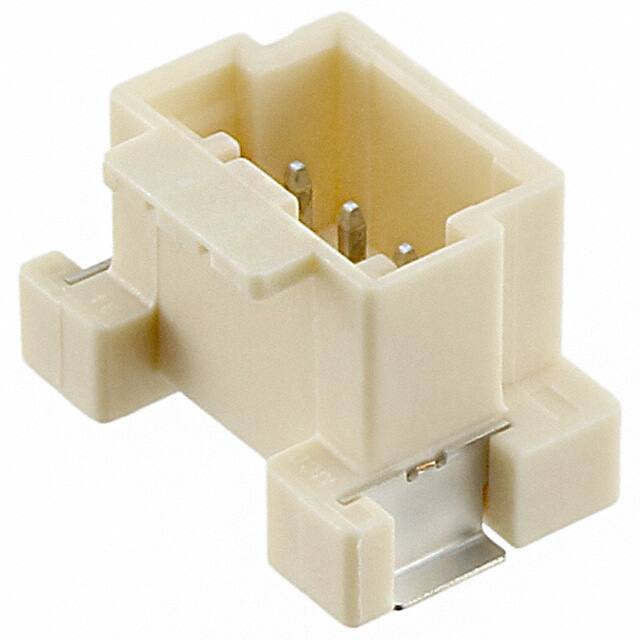

5600200300

Specifications

Yayın Yılı

2011

Reliability

COMMERCIAL

Terminal Adımı

2.0066mm

Number Of Positions Loaded

All

Insulation Color

Natural

Contact Finish Mating

Tin

Style

Board to Cable/Wire

JESD-609 Kodu

e3

Özellikler

Solder Retention

Seri

DuraClik 560020

Mating Contact Pitch

0.079 inch

Terminal

Solder

Dielectric Withstanding Voltage

700VAC V

Pcb Contact Pattern

RECTANGULAR

ECCN Kodu

EAR99

Insulation Materials

Polyamide (PA), Nylon

Body Length Or Diameter

0.496 inch

Polarization Key

POLARIZED HOUSING

Number Of Pcb Rows

1

Montaj Tipi

Surface Mount

Rated Current Signal

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Connector Type

Header

Operating Temperature Min

-40°C

Total Number Of Contacts

3

Parça Durumu

Obsolete

Contact Shape

Square

Contact Materials

Copper Alloy

Mounting Option1

LOCKING

Pitch Mating

0.079 2.00mm

Ambalaj

Tape & Reel (TR)

Fastening Type

Latch Lock

Shrouding

Shrouded - 4 Wall

Insulation Height

0.315 8.00mm

Stack Height Mating

9.3mm

Kurşunsuz Kodu

yes

Contact Type

Male Pin

Sıra Sayısı

1

Number Of Conductors

ONE
