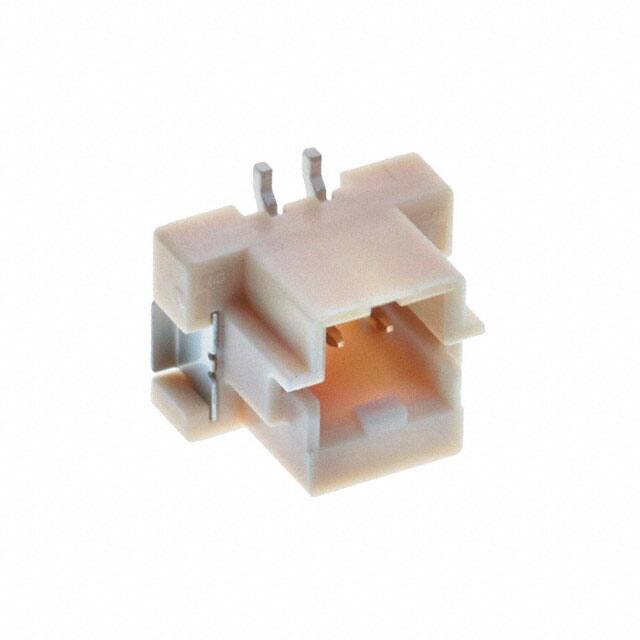

5600200230

Specifications

Connector Type

Header

Fabrika Tedarik Süresi

11 Weeks

Rated Current Signal

3A

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Mounting Option1

LOCKING

Contact Materials

Copper Alloy

Pitch Mating

0.079 2.00mm

Operating Temperature Min

-40°C

Parça Durumu

Active

Total Number Of Contacts

2

Fastening Type

Latch Lock

Ambalaj

Tape & Reel (TR)

Shrouding

Shrouded - 4 Wall

Insulation Height

0.236 6.00mm

Contact Type

Male Pin

Sıra Sayısı

1

Kurşunsuz Kodu

yes

Stack Height Mating

9.3mm

Board Mounting Option

FITTING NAIL

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Pozisyon Sayısı

2

Applications

Automotive, Industrial

Number Of Positions Loaded

All

Yayın Yılı

2015

Reliability

COMMERCIAL

Insulation Color

Natural

JESD-609 Kodu

e3

Style

Board to Cable/Wire

Contact Finish Mating

Gold

Terminal

Solder

Özellikler

Solder Retention

Mating Contact Pitch

0.079 inch

Seri

DuraClik 560020

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

700VAC V

Number Of Pcb Rows

1

Polarization Key

POLARIZED HOUSING
