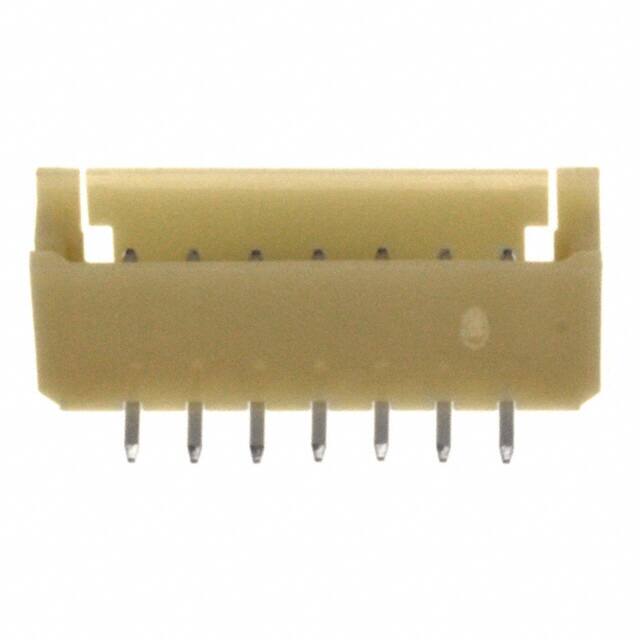

55460-0772

Specifications

Contact Finish Mating

Tin

Mounting Option1

LOCKING

RoHS Durumu

ROHS3 Compliant

Number Of Pcb Rows

1

Reference Standard

UL

Din Conformance

NO

Fabrika Tedarik Süresi

27 Weeks

Insulation Materials

Polyamide (PA), Nylon

Material Flammability Rating

UL94 V-0

Filter Feature

NO

Maks. Çalışma Sıcaklığı

105°C

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Number Of Positions Loaded

All

Min. Çalışma Sıcaklığı

-40°C

Gender

Male

Pozisyon Sayısı

7

Total Number Of Contacts

7

Insulation Height

0.276 7.00mm

Özellikler

Solder Retention

Housing Material

Thermoplastic

Contact Shape

Square

Ul Flammability Code

94V-0

Seri

Mi II 55460

Insulation Color

Natural

ECCN Kodu

EAR99

Terminal Adımı

2mm

Number Of Circuits

6

Mil Conformance

NO

Depth

7mm

Kurşunsuz Kodu

yes

Pitch Mating

0.079 2.00mm

Reliability

COMMERCIAL

Style

Board to Board or Cable

Orientation

Vertical

Contact Materials

Brass

Mixed Contacts

NO

Option

GENERAL PURPOSE
