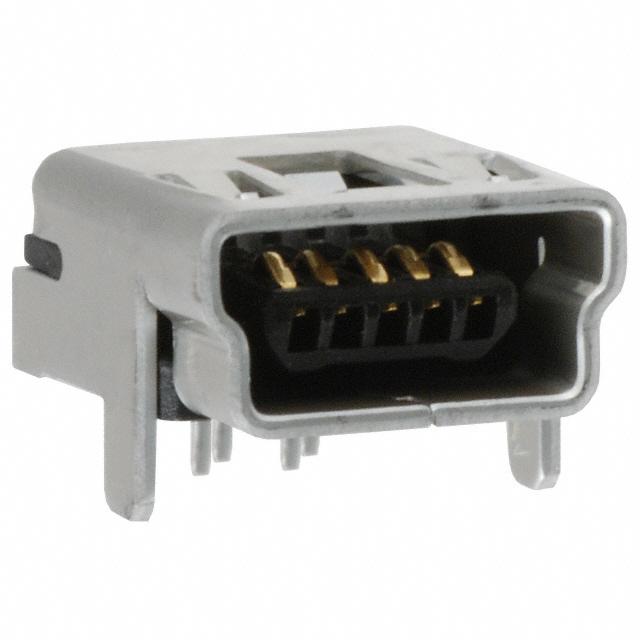

54819-0511

Specifications

Mounting Option1

DETENT

Option

GENERAL PURPOSE

Shell Finish

TIN LEAD

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Plating Thickness

30u inch

Terminal Adımı

1.6002mm

Filter Feature

NO

Polarization Key

POLARIZED HOUSING

Shell Material

COPPER

Insulation Resistance

100000000Ohm

Montaj Stili

RIGHT ANGLE

ECCN Kodu

EAR99

Parça Durumu

Discontinued

Connector Type

USB CONNECTOR

Iec Conformance

NO

Contact Gender

FEMALE

Contact Finish Mating

NOT SPECIFIED

Montaj Tipi

BOARD

Board Mounting Option

SOLDERABLE RETENTION CLIPS

Bodyshell Style

RECEPTACLE

Mil Conformance

NO

Reliability

COMMERCIAL

RoHS Durumu

Non-RoHS Compliant

Withdrawl Forcemin

1.39 N

Additional Feature

EMI SHIELDED, POLARIZED

Durability

5000 Cycles

Body Breadth

0.156 inch

Din Conformance

NO

Contact Resistance

50mOhm

Insertion Forcemax

7.1168 N

Mixed Contacts

NO

Pcb Contact Pattern

STAGGERED

Number Of Conductors

ONE

HTS Kodu

8536.69.40.30

Empty Shell

NO

Total Number Of Contacts

5

Operating Temperature Max

50°C

Yayın Yılı

2009

Number Of Pcb Rows

2

Dielectric Withstanding Voltage

100VAC V
