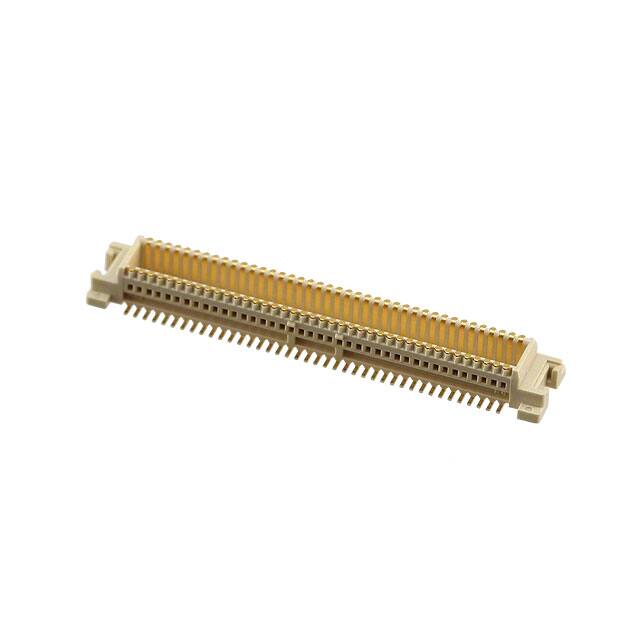

53748-0808

Specifications

Contact Finish Thickness

3.94μin 0.10μm

Gender

Male

Additional Feature

WITHOUT VACCUM PICK-UP TAPE

Halogen Free

Low Halogen

Body Breadth

0.169 inch

Montaj Tipi

Surface Mount

HTS Kodu

8536.69.40.40

Connector Type

Plug, Outer Shroud Contacts

Flammability Rating

UL94 V-0

Rated Current Signal

0.5A

Elv

Compliant

Parça Durumu

Active

Contact Resistance

50mOhm

Stack Height Mating

3mm

Pitch

0.020 0.50mm

Housing Material

Plastic

Insulation Resistance

100000000Ohm

Din Conformance

NO

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

500VAC V

Housing Color

White

Number Of Contacts

80

Maks. Çalışma Sıcaklığı

105°C

Body Depth

0.094 inch

Reach Svhc

Unknown

Durability

30 Cycles

Contact Materials

Brass

Max Voltage Rating Dc

5.05kV

JESD-609 Kodu

e4

Number Of Conductors

ONE

Yayın Yılı

2009

Seri

SlimStack 53748

Mixed Contacts

NO

Terminal

SMD/SMT

Ul Flammability Code

94V-0

Body Length Or Diameter

0.937 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Option

GENERAL PURPOSE

ECCN Kodu

EAR99
