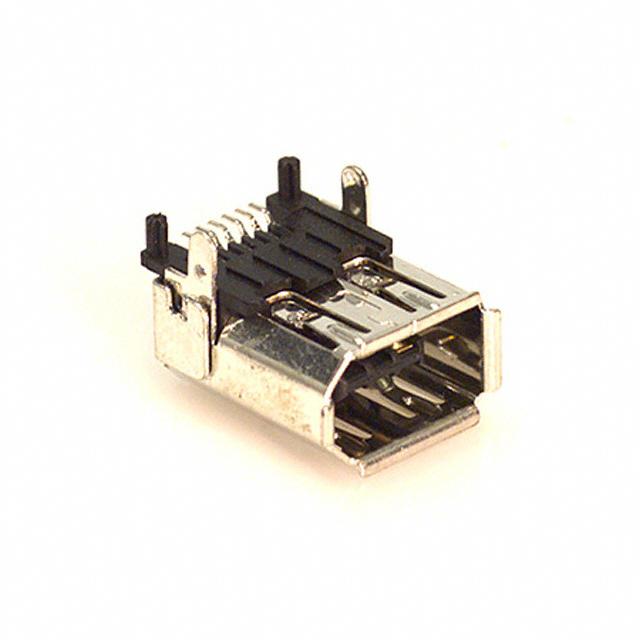

53462-0611

Specifications

Reliability

COMMERCIAL

Contact Finish Mating

NOT SPECIFIED

Parça Durumu

Discontinued

Pcb Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Housing Material

Nylon

Empty Shell

NO

Connector Type

Receptacle

Mil Conformance

NO

Shell Material

PHOSPHOR BRONZE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Dielectric Withstanding Voltage

500VAC V

Lead Pitch

2mm

Additional Feature

POLARIZED

ECCN Kodu

EAR99

Pitch

2mm

Min. Çalışma Sıcaklığı

-40°C

Number Of Pcb Rows

1

Renk

Black

Total Number Of Contacts

6

Bodyshell Style

SOCKET

Number Of Circuits

6

Contact Materials

Brass

Nominal Gerilim

40V

Iec Conformance

NO

Montaj

Horizontal, Surface Mount

Contact Resistance

30mOhm

Akım Değeri

1.5A

Contact Plating

Gold

Maks. Çalışma Sıcaklığı

85°C

Kurşunsuz

Contains Lead

Insulation Resistance

100MOhm

Option

GENERAL PURPOSE

Polarization Key

POLARIZED HOUSING

Reference Standard

UL

Filter Feature

NO

Shell Finish

TIN

Gender

Female

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0
