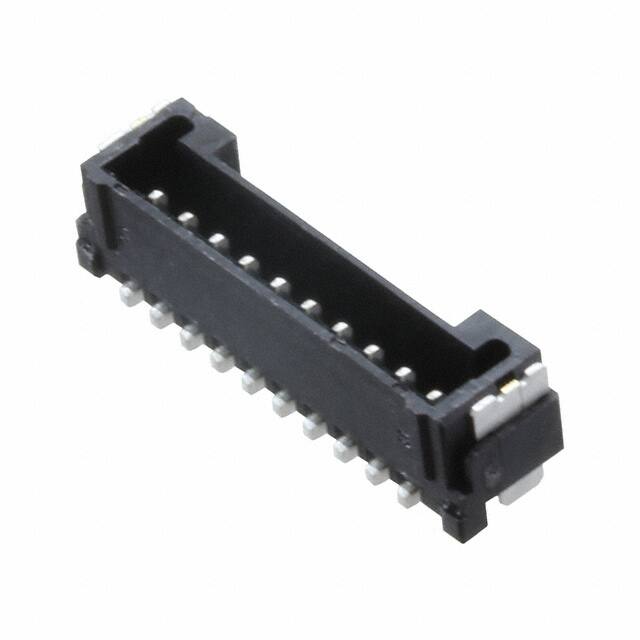

5055681071

Specifications

Mixed Contacts

NO

Fastening Type

Push-Pull

Shrouding

Shrouded - 4 Wall

RoHS Durumu

ROHS3 Compliant

Çalışma Sıcaklığı

-40°C~105°C

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Pitch Mating

0.049 1.25mm

Özellikler

Solder Retention

Contact Finish Thickness Mating

39.4μin 1.00μm

Stack Height Mating

7.4mm

Yayın Yılı

2016

Current Rating Amps

Varies by WireGAuge

Pozisyon Sayısı

10

Filter Feature

NO

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Shape

Square

Reference Standard

UL

Contact Finish Mating

Tin

Body Length Or Diameter

0.62 inch

Style

Board to Cable/Wire

Insulation Color

Black

Contact Type

Male Pin

Applications

Automotive, General Purpose, Industrial

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Seri

Micro-Lock PLUS 505568

Ambalaj

Tape & Reel (TR)

Empty Shell

NO

Connector Type

Header

Total Number Of Contacts

10

Nominal Gerilim

50VAC/DC

Contact Materials

Brass

Fabrika Tedarik Süresi

14 Weeks

Terminal

Solder

Insulation Height

0.165 4.20mm

HTS Kodu

8536.69.40.30

Sıra Sayısı

1
