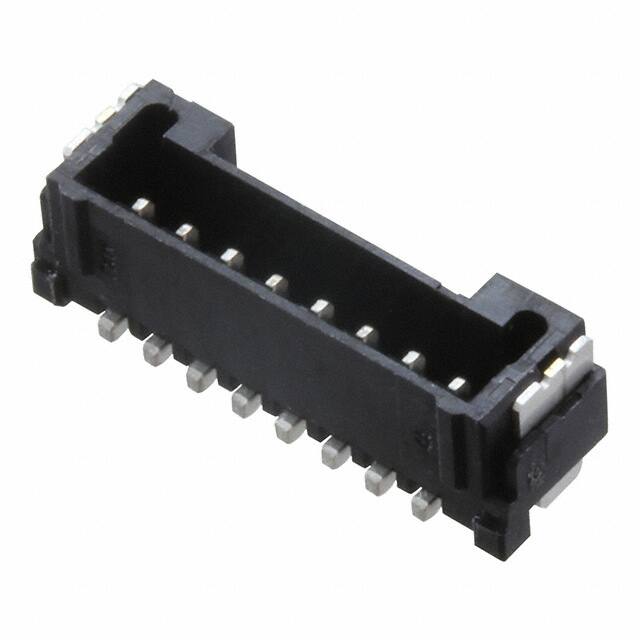

5055680871

Specifications

Montaj Tipi

Surface Mount

Contact Materials

Brass

Nominal Gerilim

50VAC/DC

Sıra Sayısı

1

Insulation Height

0.165 4.20mm

Terminal

Solder

Fabrika Tedarik Süresi

14 Weeks

Empty Shell

NO

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

8

Connector Type

Header

Contact Type

Male Pin

Applications

Automotive, General Purpose, Industrial

Insulation Color

Black

Style

Board to Cable/Wire

Seri

Micro-Lock PLUS 505568

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Reference Standard

UL

Contact Shape

Square

Contact Finish Mating

Tin

Body Length Or Diameter

0.522 inch

Current Rating Amps

Varies by WireGAuge

Yayın Yılı

2016

Stack Height Mating

7.4mm

Contact Finish Thickness Mating

39.4μin 1.00μm

Özellikler

Solder Retention

Pitch Mating

0.049 1.25mm

Contact Finish Thickness Post

39.4μin 1.00μm

Filter Feature

NO

Pozisyon Sayısı

8

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-40°C~105°C

Mixed Contacts

NO

Shrouding

Shrouded - 4 Wall

RoHS Durumu

ROHS3 Compliant

Fastening Type

Push-Pull
