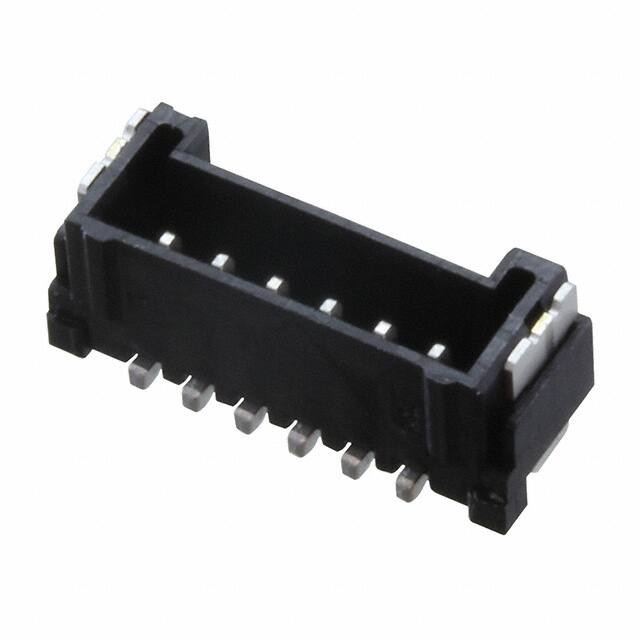

5055680671

Specifications

Total Number Of Contacts

6

Connector Type

Header

Ambalaj

Tape & Reel (TR)

Empty Shell

NO

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Seri

Micro-Lock PLUS 505568

Style

Board to Cable/Wire

Insulation Color

Black

Contact Type

Male Pin

Applications

Automotive, General Purpose, Industrial

Montaj Tipi

Surface Mount

Fabrika Tedarik Süresi

13 Weeks

Insulation Height

0.165 4.20mm

Terminal

Solder

Sıra Sayısı

1

Contact Materials

Brass

Nominal Gerilim

50VAC/DC

Çalışma Sıcaklığı

-40°C~105°C

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Fastening Type

Push-Pull

Shrouding

Shrouded - 4 Wall

RoHS Durumu

ROHS3 Compliant

Mixed Contacts

NO

Body Length Or Diameter

0.423 inch

Contact Finish Mating

Tin

Contact Shape

Square

Reference Standard

UL

Pozisyon Sayısı

6

Contact Finish Thickness Post

39.4μin 1.00μm

Filter Feature

NO

Pitch Mating

0.049 1.25mm

Özellikler

Solder Retention

Stack Height Mating

7.4mm

Contact Finish Thickness Mating

39.4μin 1.00μm

Yayın Yılı

2017

Current Rating Amps

Varies by WireGAuge
