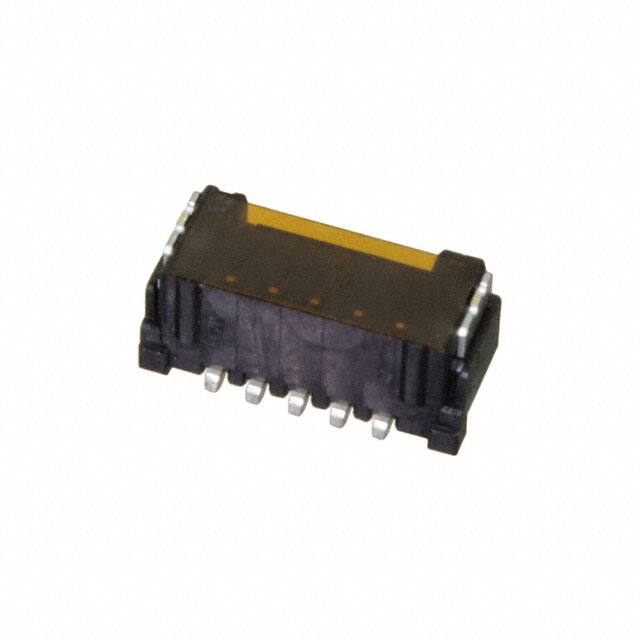

5055680571

Specifications

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-40°C~105°C

RoHS Durumu

ROHS3 Compliant

Shrouding

Shrouded - 4 Wall

Fastening Type

Push-Pull

Mixed Contacts

NO

Contact Finish Mating

Tin

Body Length Or Diameter

0.374 inch

Contact Shape

Square

Reference Standard

UL

Filter Feature

NO

Contact Finish Thickness Post

39.4μin 1.00μm

Pozisyon Sayısı

5

Stack Height Mating

7.4mm

Contact Finish Thickness Mating

39.4μin 1.00μm

Current Rating Amps

Varies by WireGAuge

Yayın Yılı

2017

Pitch Mating

0.049 1.25mm

Özellikler

Solder Retention

Shell Material

GLASS FILLED POLYAMIDE

Connector Type

Header

Total Number Of Contacts

5

Ambalaj

Tape & Reel (TR)

Ul Flammability Code

94V-0

Empty Shell

YES

Seri

Micro-Lock PLUS 505568

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Insulation Color

Black

Applications

Automotive, General Purpose, Industrial

Contact Type

Male Pin

Style

Board to Cable/Wire

Montaj Tipi

Surface Mount

Fabrika Tedarik Süresi

12 Weeks

Terminal

Solder

Insulation Height

0.165 4.20mm

Sıra Sayısı

1
