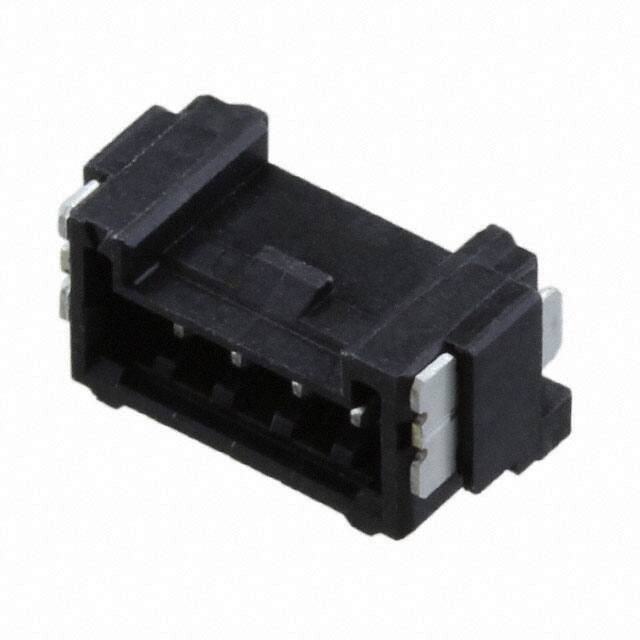

5055680471

Specifications

RoHS Durumu

ROHS3 Compliant

Shrouding

Shrouded - 4 Wall

Fastening Type

Push-Pull

Mixed Contacts

NO

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-40°C~105°C

Filter Feature

NO

Contact Finish Thickness Post

39.4μin 1.00μm

Pozisyon Sayısı

4

Current Rating Amps

Varies by WireGAuge

Yayın Yılı

2017

Stack Height Mating

7.4mm

Contact Finish Thickness Mating

39.4μin 1.00μm

Özellikler

Solder Retention

Shell Material

GLASS FILLED POLYAMIDE

Pitch Mating

0.049 1.25mm

Contact Finish Mating

Tin

Reference Standard

UL

Contact Shape

Square

Seri

Micro-Lock PLUS 505568

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

Automotive, General Purpose, Industrial

Contact Type

Male Pin

Insulation Color

Black

Style

Board to Cable/Wire

Connector Type

Header

Total Number Of Contacts

4

Empty Shell

YES

Ambalaj

Tape & Reel (TR)

Sıra Sayısı

1

Fabrika Tedarik Süresi

16 Weeks

Insulation Height

0.165 4.20mm

Terminal

Solder

Contact Materials

Brass

Nominal Gerilim

50VAC/DC

Montaj Tipi

Surface Mount
