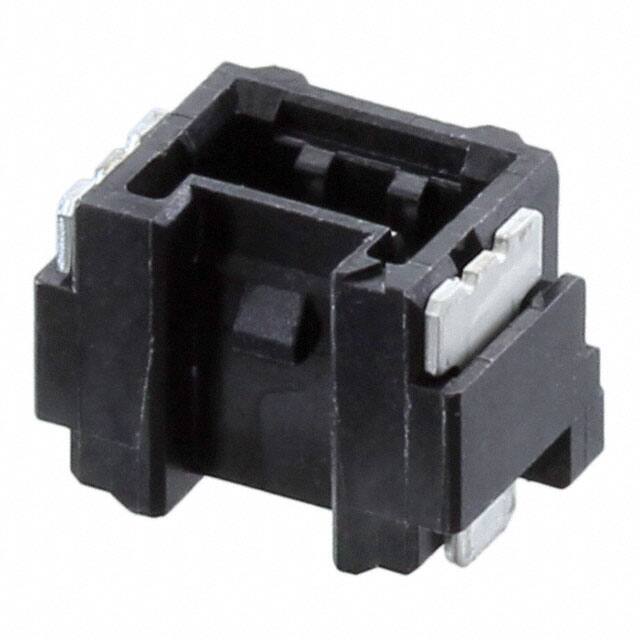

5055680271

Specifications

Mixed Contacts

NO

Fastening Type

Push-Pull

RoHS Durumu

ROHS3 Compliant

Shrouding

Shrouded - 4 Wall

Çalışma Sıcaklığı

-40°C~105°C

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Özellikler

Solder Retention

Pitch Mating

0.049 1.25mm

Current Rating Amps

Varies by WireGAuge

Yayın Yılı

2017

Stack Height Mating

7.4mm

Contact Finish Thickness Mating

39.4μin 1.00μm

Pozisyon Sayısı

2

Filter Feature

NO

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Shape

Square

Contact Finish Mating

Tin

Style

Board to Cable/Wire

Applications

Automotive, General Purpose, Industrial

Contact Type

Male Pin

Insulation Color

Black

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

Micro-Lock PLUS 505568

Iec Conformance

NO

Empty Shell

NO

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

2

Connector Type

Header

Additional Feature

POLARIZED

Nominal Gerilim

50VAC/DC

Contact Materials

Brass

Din Conformance

NO

HTS Kodu

8536.69.40.30

Sıra Sayısı

1

Fabrika Tedarik Süresi

14 Weeks

Terminal

Solder
