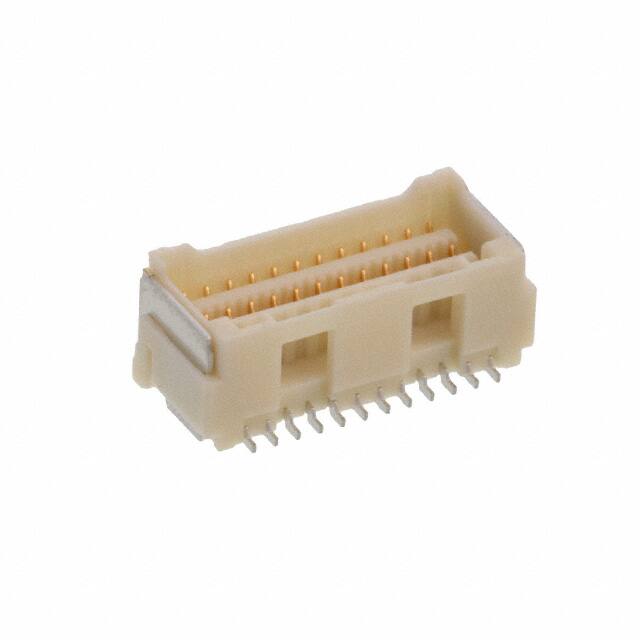

5054062460

Specifications

Insulation Materials

Resin

Sıra Sayısı

2

RoHS Durumu

ROHS3 Compliant

Seri

CLIK-Mate 505406

Insulation Height

0.344 8.75mm

Contact Type

Forked

Pozisyon Sayısı

24

Yayın Yılı

2015

Terminal

Solder

Contact Materials

Copper Alloy

Ambalaj

Tape & Reel (TR)

Mounting Option1

LOCKING

Çalışma Sıcaklığı

-40°C~105°C

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle

Contact Finish Mating

Gold

Insulation Resistance

500000000Ohm

Style

Board to Cable/Wire

Contact Finish Post

Tin

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Beige

Parça Durumu

Active

Terminal Adımı

1.4986mm

Özellikler

Solder Retention

HTS Kodu

8536.69.40.40

Reliability

COMMERCIAL

Contact Finish Thickness Mating

8.00μin 0.203μm

Mating Contact Pitch

0.059 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Post

39.4μin 1.00μm

Total Number Of Contacts

24

Pitch Mating

0.059 1.50mm

Material Flammability Rating

UL94 V-0

Body Breadth

0.36 inch

Fastening Type

Latch Holder

Body Length Or Diameter

0.878 inch

Reference Standard

UL

Montaj Tipi

Surface Mount
