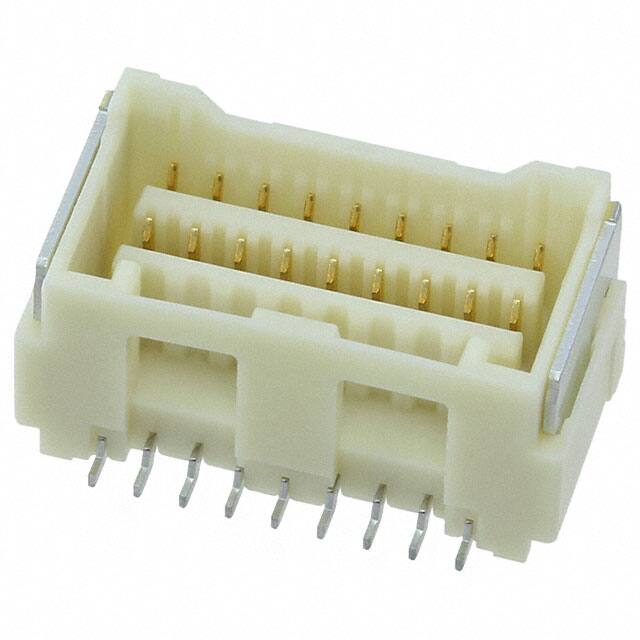

5054061860

Specifications

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.059 1.50mm

Total Number Of Contacts

18

Contact Finish Thickness Post

39.4μin 1.00μm

Mating Contact Pitch

0.059 inch

Contact Finish Thickness Mating

8.00μin 0.203μm

Reliability

COMMERCIAL

HTS Kodu

8536.69.40.40

Özellikler

Solder Retention

Plating Thickness

7.87μin

Number Of Conductors

ONE

Body Depth

0.346 inch

Contact Gender

FEMALE

Number Of Pcb Rows

2

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Montaj Tipi

Surface Mount

Body Breadth

0.36 inch

Body Length Or Diameter

0.701 inch

Reference Standard

UL

Fastening Type

Latch Holder

Terminal

Solder

Contact Materials

Copper Alloy

Contact Type

Forked

Yayın Yılı

2015

Pozisyon Sayısı

18

Insulation Height

0.344 8.75mm

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Resin

Sıra Sayısı

2

Seri

CLIK-Mate 505406

Terminal Adımı

1.4986mm

Number Of Positions Loaded

All

ECCN Kodu

EAR99

Style

Board to Cable/Wire

Contact Finish Post

Tin

Parça Durumu

Active

Insulation Color

Beige

Pcb Contact Pattern

RECTANGULAR

Insulation Resistance

500000000Ohm
