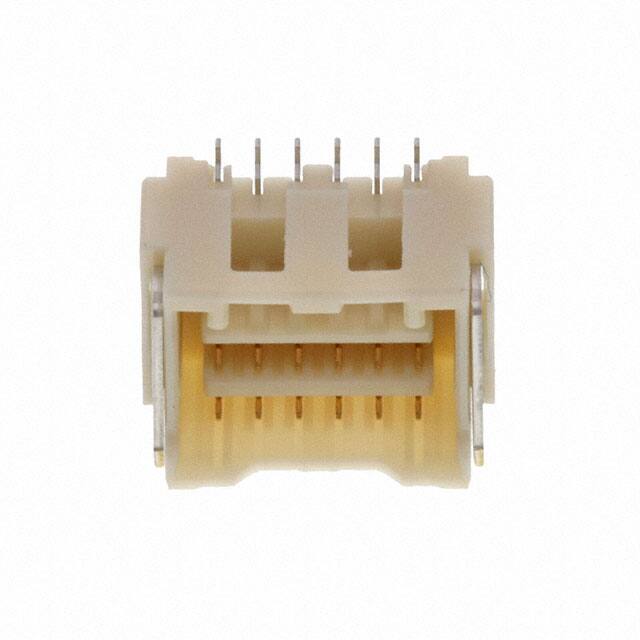

5054061260

Specifications

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Number Of Pcb Rows

2

Body Depth

0.346 inch

Contact Gender

FEMALE

Number Of Conductors

ONE

Plating Thickness

7.87μin

Fastening Type

Latch Holder

Reference Standard

UL

Body Breadth

0.36 inch

Montaj Tipi

Surface Mount

Contact Finish Thickness Post

39.4μin 1.00μm

Total Number Of Contacts

12

Pitch Mating

0.059 1.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Özellikler

Solder Retention

HTS Kodu

8536.69.40.40

Reliability

COMMERCIAL

Contact Finish Thickness Mating

8.00μin 0.203μm

Mating Contact Pitch

0.059 inch

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Beige

Parça Durumu

Active

Style

Board to Cable/Wire

Contact Finish Post

Tin

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Terminal Adımı

1.4986mm

Ambalaj

Tape & Reel (TR)

Mounting Option1

LOCKING

Çalışma Sıcaklığı

-40°C~105°C

Fabrika Tedarik Süresi

12 Weeks

Connector Type

Receptacle

Contact Finish Mating

Gold

Insulation Resistance

500000000Ohm

Pozisyon Sayısı

12

JESD-609 Kodu

e3

Yayın Yılı

2015

Contact Type

Forked

Terminal

Solder
