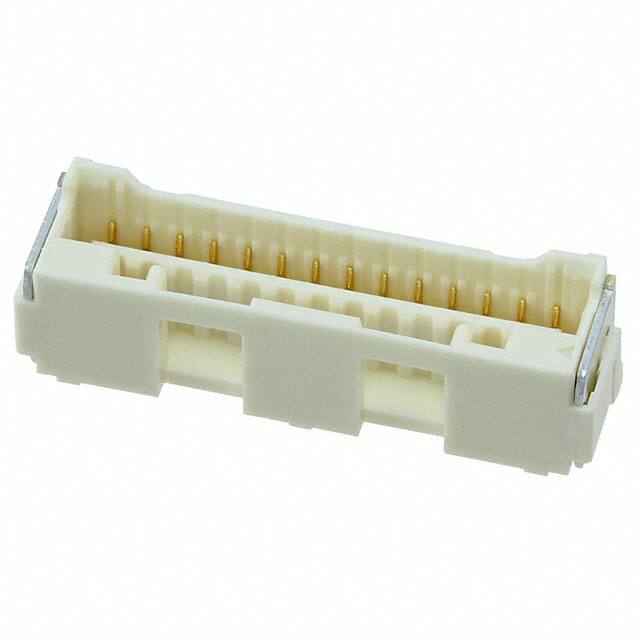

5054051470

Specifications

Insulation Resistance

500000000Ohm

Contact Finish Mating

Gold

Connector Type

Receptacle

Mounting Option1

LOCKING

Çalışma Sıcaklığı

-40°C~105°C

Fabrika Tedarik Süresi

22 Weeks

Ambalaj

Tape & Reel (TR)

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Nominal Gerilim

100V

Insulation Color

Beige

Number Of Positions Loaded

All

ECCN Kodu

EAR99

Contact Finish Post

Tin

Style

Board to Cable/Wire

Insulation Height

0.285 7.25mm

Seri

CLIK-Mate 505405

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Resin

Sıra Sayısı

1

Contact Materials

Copper Alloy

Terminal

Solder

Current Rating Amps

Varies by WireGAuge

Contact Resistance

20mOhm

Yayın Yılı

2015

Pozisyon Sayısı

14

Contact Type

Forked

Montaj Tipi

Surface Mount

Body Length Or Diameter

0.996 inch

Reference Standard

UL

Fastening Type

Latch Holder

Body Breadth

0.25 inch

Body Depth

0.287 inch

Contact Gender

FEMALE

Number Of Conductors

ONE

Plating Thickness

7.87μin

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Number Of Pcb Rows

1

Mating Contact Pitch

0.059 inch

Reliability

COMMERCIAL
