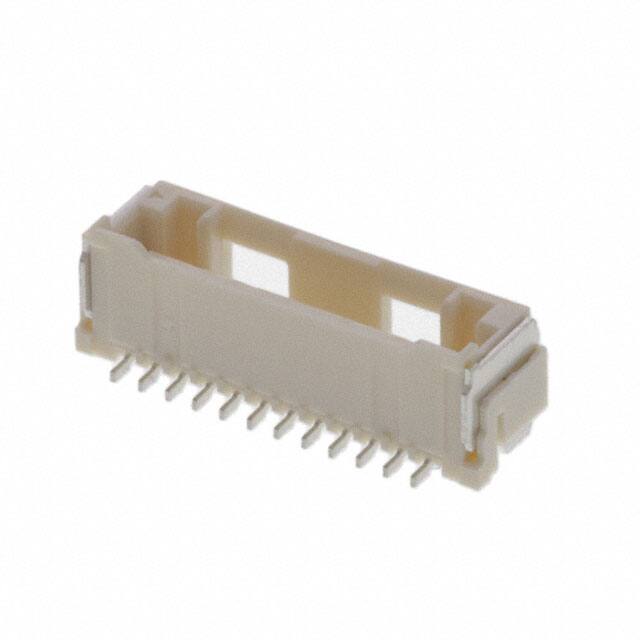

5054051270

Specifications

Pitch Mating

0.059 1.50mm

Mating Contact Pitch

0.059 inch

Contact Finish Thickness Mating

8.00μin 0.203μm

Reliability

COMMERCIAL

HTS Kodu

8536.69.40.40

Plating Thickness

7.87μin

Number Of Pcb Rows

1

Montaj Tipi

Surface Mount

Body Length Or Diameter

0.878 inch

Fastening Type

Latch Holder

Body Breadth

0.25 inch

Contact Materials

Copper Alloy

Current Rating Amps

Varies by WireGAuge

Pozisyon Sayısı

12

Contact Type

Forked

Seri

CLIK-Mate 505405

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Contact Finish Post

Tin

Insulation Resistance

500000000Ohm

Fabrika Tedarik Süresi

13 Weeks

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tape & Reel (TR)

Material Flammability Rating

UL94 V-0

Total Number Of Contacts

12

Contact Finish Thickness Post

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Contact Gender

FEMALE

Body Depth

0.287 inch

Number Of Conductors

ONE

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Reference Standard

UL

Terminal

Solder

Contact Resistance

20mOhm

JESD-609 Kodu

e3

Yayın Yılı

2015

Insulation Height

0.285 7.25mm

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Resin
