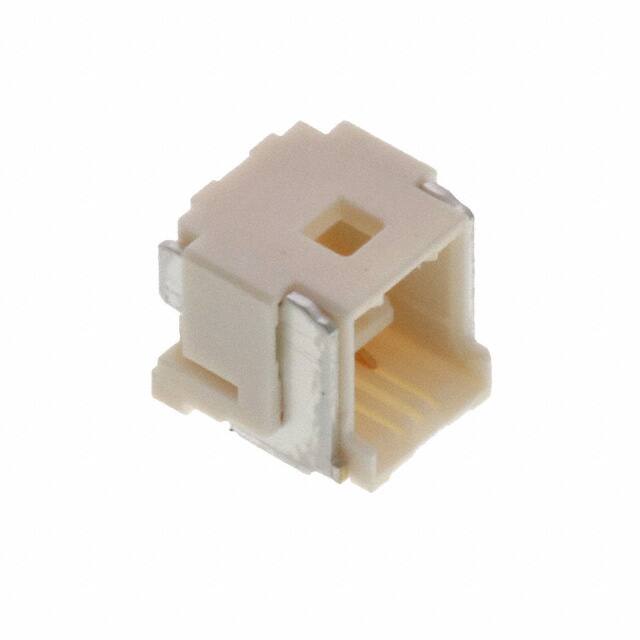

5054050270

Specifications

Mating Contact Pitch

0.059 inch

Reliability

COMMERCIAL

Contact Finish Thickness Mating

8.00μin 0.203μm

HTS Kodu

8536.69.40.40

Özellikler

Solder Retention

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.059 1.50mm

Total Number Of Contacts

2

Contact Finish Thickness Post

39.4μin 1.00μm

Montaj Tipi

Surface Mount

Reference Standard

UL

Fastening Type

Latch Holder

Plating Thickness

7.87μin

Number Of Conductors

ONE

Contact Gender

FEMALE

Number Of Pcb Rows

1

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Insulation Height

0.285 7.25mm

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Resin

Sıra Sayısı

1

Seri

CLIK-Mate 505405

Terminal

Solder

Contact Materials

Copper Alloy

Current Rating Amps

Varies by WireGAuge

Contact Type

Forked

Yayın Yılı

2015

Pozisyon Sayısı

2

Connector Type

Receptacle

Contact Finish Mating

Gold

Insulation Resistance

500000000Ohm

Mounting Option1

LOCKING

Çalışma Sıcaklığı

-40°C~105°C

Fabrika Tedarik Süresi

13 Weeks

Ambalaj

Tape & Reel (TR)

Number Of Positions Loaded

All

ECCN Kodu

EAR99

Contact Finish Post

Tin

Style

Board to Cable/Wire
