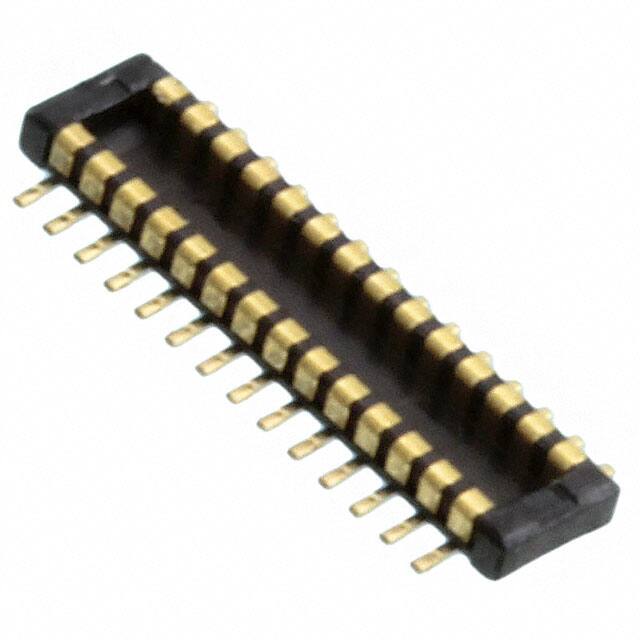

5046222410

Specifications

RoHS Durumu

ROHS3 Compliant

Contact Materials

NOT SPECIFIED

Ul Flammability Code

94V-0

Din Conformance

NO

Operating Temperature Min

-40°C

Filter Feature

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE

Total Number Of Contacts

24

Number Of Pcb Rows

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Mil Conformance

NO

Yayın Yılı

2015

Fabrika Tedarik Süresi

16 Weeks

JESD-609 Kodu

e4

Option

GENERAL PURPOSE

Stack Height Mating

0.6mm

Insulator Color

BLACK

Pitch

0.014 0.35mm

Parça Durumu

Obsolete

Contact Pattern

RECTANGULAR

Operating Temperature Max

85°C

Contact Gender

MALE

Connector Type

Plug, Outer Shroud Contacts

Body Breadth

0.049 inch

Insulation Materials

LIQUID CRYSTAL POLYMER

Montaj Tipi

Surface Mount

Mixed Contacts

NO

Sıra Sayısı

2

Seri

SlimStack 504622

ECCN Kodu

EAR99

Height Above Board

0.019 0.48mm

Reliability

COMMERCIAL

Contact Finish

Gold

Iec Conformance

NO

Pozisyon Sayısı

24

Ambalaj

Tape & Reel (TR)

Body Depth

0.018 inch
