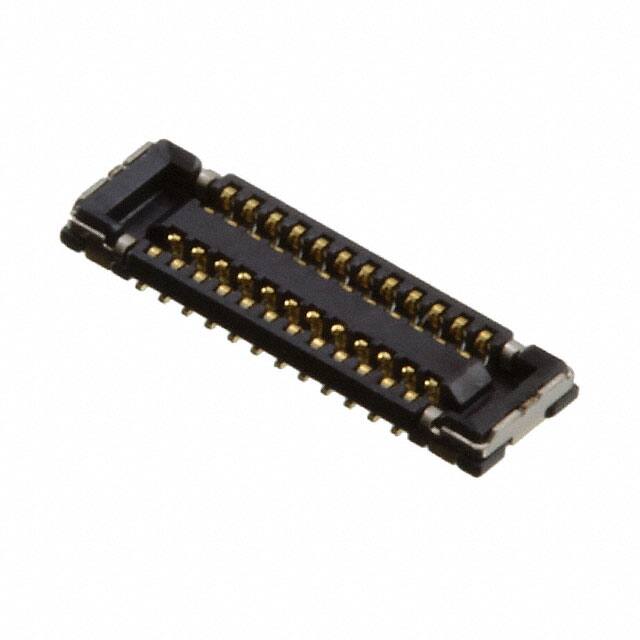

5046182410

Specifications

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Pcb Contact Pattern

RECTANGULAR

Number Of Pcb Rows

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Pcb Contact Row Spacing

1.905 mm

Total Number Of Contacts

24

Board Mounting Option

FITTING NAIL

Stack Height Mating

0.6mm

Fabrika Tedarik Süresi

16 Weeks

Rated Current Signal

0.3A

Yayın Yılı

2015

Durability

30 Cycles

RoHS Durumu

ROHS3 Compliant

Contact Materials

COPPER ALLOY

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE

Operating Temperature Min

-40°C

Seri

SlimStack 504618

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

350VAC V

Height Above Board

0.024 0.61mm

Sıra Sayısı

2

Insulation Resistance

100000000Ohm

Contact Resistance

80mOhm

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

24

Contact Finish

Gold

Reliability

COMMERCIAL

Özellikler

Solder Retention

Pitch

0.014 0.35mm

Insulator Color

BLACK

Montaj Tipi

Surface Mount

Connector Type

Receptacle, Center Strip Contacts

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

HTS Kodu

8536.69.40.40

Body Breadth

0.079 inch

Operating Temperature Max

85°C

Contact Gender

FEMALE
