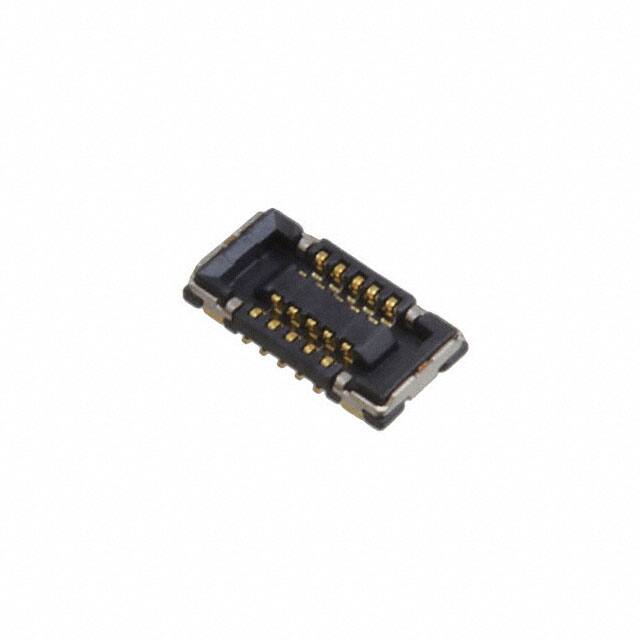

5046181010

Specifications

Stack Height Mating

0.6mm

Yayın Yılı

2015

Fabrika Tedarik Süresi

11 Weeks

Rated Current Signal

0.3A

Polarization Key

POLARIZED HOUSING

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Pcb Contact Row Spacing

1.905 mm

Total Number Of Contacts

10

Board Mounting Option

FITTING NAIL

Number Of Pcb Rows

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Number Of Conductors

ONE

Body Length Or Diameter

0.154 inch

Operating Temperature Min

-40°C

Durability

30 Cycles

RoHS Durumu

ROHS3 Compliant

Contact Materials

COPPER ALLOY

Pozisyon Sayısı

10

Ambalaj

Tape & Reel (TR)

Reliability

COMMERCIAL

Contact Finish

Gold

Sıra Sayısı

2

Seri

SlimStack 504618

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

350VAC V

Height Above Board

0.024 0.61mm

Contact Resistance

80mOhm

Connector Type

Receptacle, Center Strip Contacts

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

HTS Kodu

8536.69.40.40

Body Breadth

0.079 inch

Montaj Tipi

Surface Mount

Contact Pattern

RECTANGULAR

Parça Durumu

Obsolete

Operating Temperature Max

85°C

Contact Gender

FEMALE

Pitch

0.014 0.35mm

Özellikler

Solder Retention
