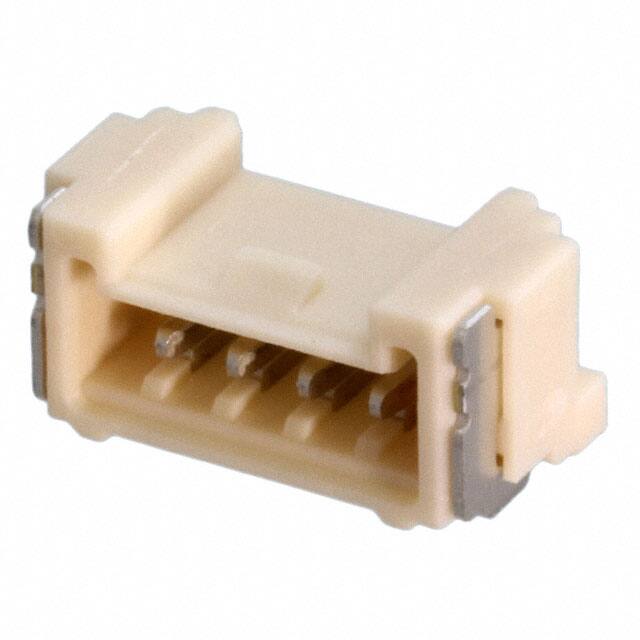

5041950470

Specifications

Body Length Or Diameter

0.325 inch

Operating Temperature Min

-25°C

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Contact Materials

Brass

Terminal

Solder

Durability

30 Cycles

Pitch Mating

0.049 1.25mm

Fabrika Tedarik Süresi

11 Weeks

Insulation Color

Natural

Fastening Type

Latch Lock

Yayın Yılı

2014

Contact Type

Male Blade

Number Of Pcb Rows

1

Contact Finish Thickness Mating

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Total Number Of Contacts

4

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Operating Temperature Max

85°C

Insulation Height

0.163 4.15mm

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Montaj Tipi

Surface Mount, Right Angle

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Özellikler

Solder Retention

Number Of Positions Loaded

All

Contact Shape

Rectangular

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Ambalaj

Tape & Reel (TR)

Contact Finish Mating

Tin

Pozisyon Sayısı

4

Contact Resistance

20mOhm

Contact Finish Thickness Post

39.4μin 1.00μm

Dielectric Withstanding Voltage

700VAC V

ECCN Kodu

EAR99
