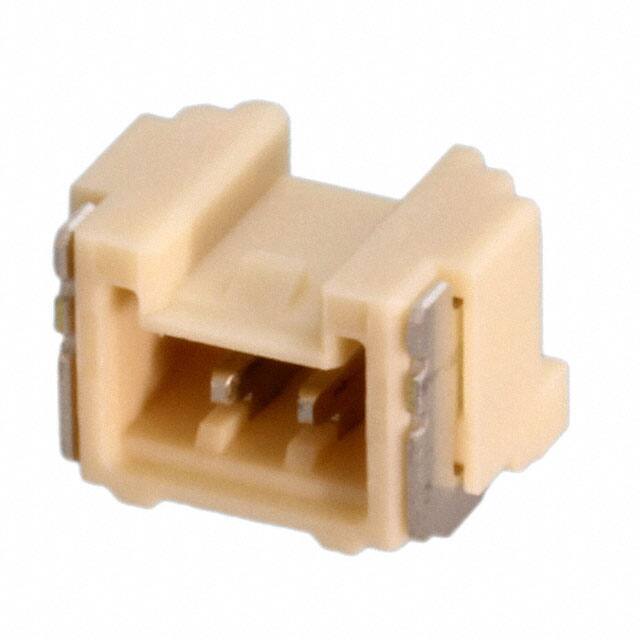

5041950270

Specifications

Sıra Sayısı

1

Seri

Micro-Lock 504195

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

700VAC V

Contact Finish Thickness Post

39.4μin 1.00μm

Pozisyon Sayısı

2

Contact Finish Mating

Tin

Ambalaj

Tape & Reel (TR)

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Reliability

COMMERCIAL

Contact Shape

Rectangular

Number Of Positions Loaded

All

Özellikler

Solder Retention

HTS Kodu

8536.69.40.40

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Operating Temperature Max

85°C

Insulation Height

0.163 4.15mm

Polarization Key

POLARIZED HOUSING

Reference Standard

UL

Total Number Of Contacts

2

Number Of Pcb Rows

1

Contact Finish Thickness Mating

39.4μin 1.00μm

Mounting Option1

LOCKING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Blade

Yayın Yılı

2014

Fastening Type

Latch Lock

Insulation Color

Natural

Fabrika Tedarik Süresi

11 Weeks

Pitch Mating

0.049 1.25mm

Durability

30 Cycles

Terminal

Solder

Contact Materials

Brass

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE
