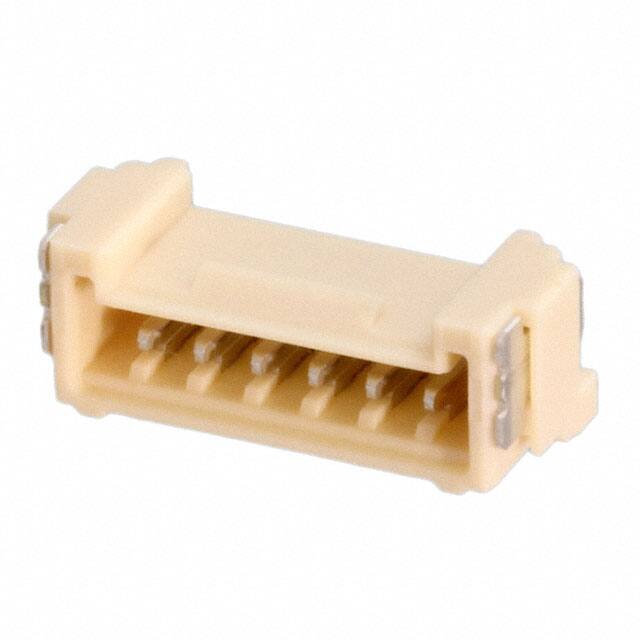

5041940670

Specifications

Operating Temperature Max

85°C

Insulation Height

0.163 4.15mm

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Montaj Tipi

Surface Mount

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Özellikler

Solder Retention

Number Of Positions Loaded

All

Contact Shape

Rectangular

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Ambalaj

Tape & Reel (TR)

Contact Finish Mating

Tin

Pozisyon Sayısı

6

Contact Resistance

20mOhm

Contact Finish Thickness Post

39.4μin 1.00μm

Dielectric Withstanding Voltage

700VAC V

ECCN Kodu

EAR99

Seri

Micro-Lock 504194

Sıra Sayısı

1

Body Length Or Diameter

0.423 inch

Operating Temperature Min

-25°C

Mating Contact Pitch

0.049 inch

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Contact Materials

Brass

Terminal

Solder

Durability

30 Cycles

Fabrika Tedarik Süresi

6 Weeks

Pitch Mating

0.049 1.25mm

Insulation Color

Natural

Fastening Type

Latch Lock

Yayın Yılı

2014

Contact Type

Male Blade

JESD-609 Kodu

e3

Stack Height Mating

7.3mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING
