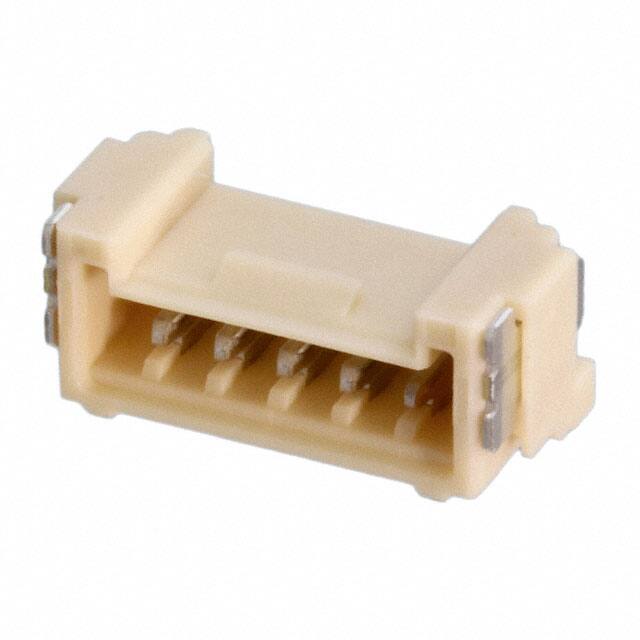

5041940570

Specifications

Total Number Of Contacts

5

Number Of Pcb Rows

1

Contact Finish Thickness Mating

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Polarization Key

POLARIZED HOUSING

Reference Standard

UL

Fastening Type

Latch Lock

Contact Type

Male Blade

Yayın Yılı

2014

Insulation Color

Natural

Fabrika Tedarik Süresi

11 Weeks

Pitch Mating

0.049 1.25mm

JESD-609 Kodu

e3

Stack Height Mating

7.3mm

RoHS Durumu

ROHS3 Compliant

Contact Materials

Brass

Terminal

Solder

Durability

30 Cycles

Body Length Or Diameter

0.374 inch

Mating Contact Pitch

0.049 inch

Number Of Conductors

ONE

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Resistance

20mOhm

Sıra Sayısı

1

Dielectric Withstanding Voltage

700VAC V

ECCN Kodu

EAR99

Seri

Micro-Lock 504194

Reliability

COMMERCIAL

Contact Finish Mating

Tin

Pozisyon Sayısı

5

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Ambalaj

Tape & Reel (TR)

Contact Shape

Rectangular

Özellikler

Solder Retention

Number Of Positions Loaded

All

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Insulation Height

0.163 4.15mm
