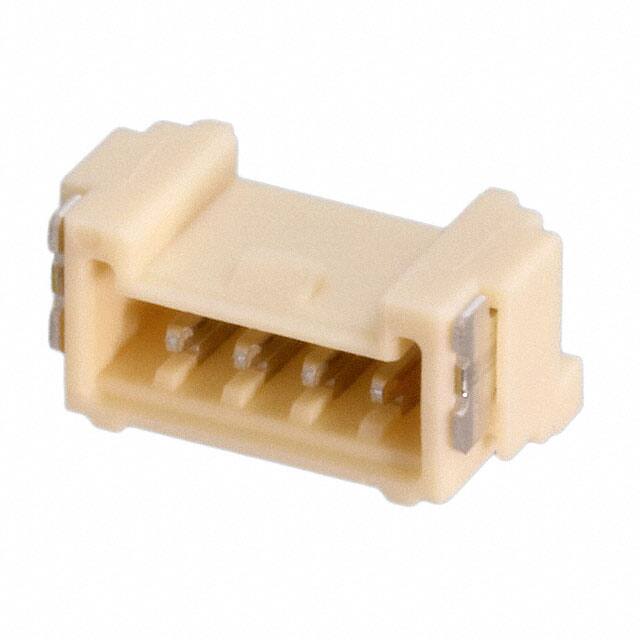

5041940470

Specifications

Operating Temperature Min

-25°C

Body Length Or Diameter

0.325 inch

Number Of Conductors

ONE

Contact Materials

Brass

RoHS Durumu

ROHS3 Compliant

Durability

30 Cycles

Terminal

Solder

Insulation Color

Natural

Fabrika Tedarik Süresi

11 Weeks

Pitch Mating

0.049 1.25mm

Yayın Yılı

2014

Contact Type

Male Blade

Fastening Type

Latch Lock

Stack Height Mating

7.3mm

JESD-609 Kodu

e3

Number Of Pcb Rows

1

Contact Finish Thickness Mating

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Total Number Of Contacts

4

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Insulation Height

0.163 4.15mm

Operating Temperature Max

85°C

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Montaj Tipi

Surface Mount

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header

Number Of Positions Loaded

All

Özellikler

Solder Retention

Contact Shape

Rectangular

Reliability

COMMERCIAL

Ambalaj

Tape & Reel (TR)

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

4

Contact Finish Mating

Tin

Contact Resistance

20mOhm

Contact Finish Thickness Post

39.4μin 1.00μm
