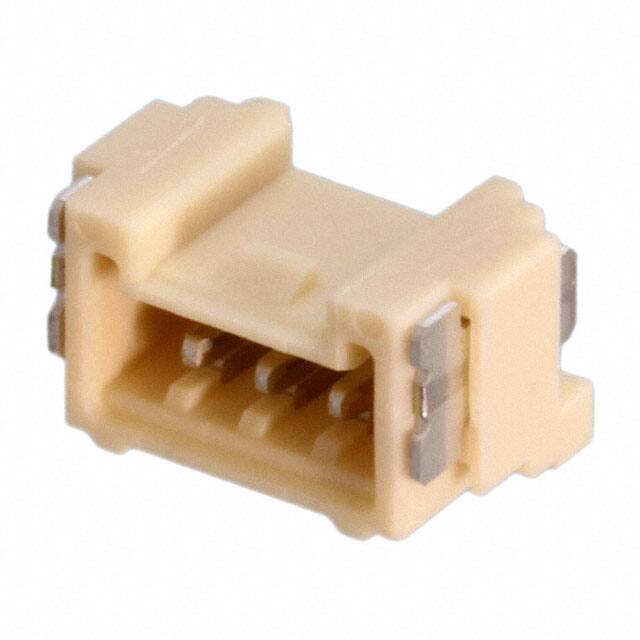

5041940370

Specifications

RoHS Durumu

ROHS3 Compliant

Contact Materials

Brass

Terminal

Solder

Operating Temperature Min

-25°C

Body Length Or Diameter

0.276 inch

Mating Contact Pitch

0.049 inch

Number Of Conductors

ONE

Total Number Of Contacts

3

Number Of Pcb Rows

1

Contact Finish Thickness Mating

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Polarization Key

POLARIZED HOUSING

Reference Standard

UL

Fastening Type

Latch Lock

Contact Type

Male Blade

Yayın Yılı

2014

Insulation Color

Natural

Fabrika Tedarik Süresi

11 Weeks

Pitch Mating

0.049 1.25mm

JESD-609 Kodu

e3

Stack Height Mating

7.3mm

Contact Shape

Rectangular

Özellikler

Solder Retention

Number Of Positions Loaded

All

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Insulation Height

0.163 4.15mm

Operating Temperature Max

85°C

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Montaj Tipi

Surface Mount

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Resistance

20mOhm

Sıra Sayısı

1

Seri

Micro-Lock 504194

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

700VAC V

Reliability

COMMERCIAL

Contact Finish Mating

Tin
