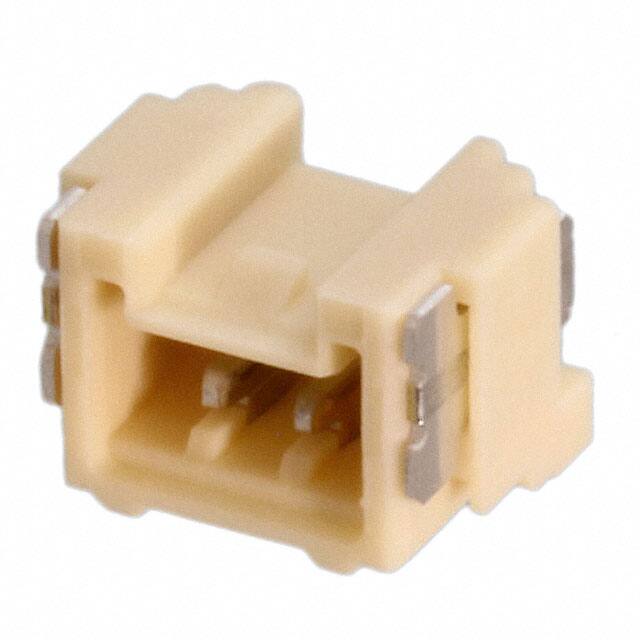

5041940270

Specifications

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Operating Temperature Max

85°C

Insulation Height

0.163 4.15mm

HTS Kodu

8536.69.40.40

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header

Montaj Tipi

Surface Mount

Contact Shape

Rectangular

Number Of Positions Loaded

All

Özellikler

Solder Retention

Reliability

COMMERCIAL

Iec Conformance

NO

Pozisyon Sayısı

2

Contact Finish Mating

Tin

Ambalaj

Tape & Reel (TR)

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Contact Finish Thickness Post

39.4μin 1.00μm

Mixed Contacts

NO

Sıra Sayısı

1

Dielectric Withstanding Voltage

700VAC V

ECCN Kodu

EAR99

Seri

Micro-Lock 504194

Number Of Conductors

ONE

Filter Feature

NO

Mating Contact Pitch

0.049 inch

Contact Materials

Brass

RoHS Durumu

ROHS3 Compliant

Durability

30 Cycles

Terminal

Solder

Din Conformance

NO

Yayın Yılı

2014

Contact Type

Male Blade

Fastening Type

Latch Lock

Insulation Color

Natural

Fabrika Tedarik Süresi

11 Weeks

Pitch Mating

0.049 1.25mm

Stack Height Mating

7.3mm

Option

GENERAL PURPOSE
